This 2.4 GHz WLAN signal booster is designed for IEEE 802.11b/g/n wireless LAN applications. It adopts the direct sequence spread spectrum(DSSS) and orthogonal frequency division multiplexing(OFDM) technology of WLAN communication.
The product is compatible with time-division duplexing(TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/WiFi devices, BT, ZigBee and increase the signal strength, therefore a larger WLAN coverage and more stable transmission rate.
20X the power, improving the link quality and coverage of certified WLAN devices.2.5dB ultra-low noise.Wide 6-16V operating input range.Working with certified IEEE 802.11b/g/n wireless LAN devices.Simply plug and play, no software is required.
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC supply current: 435mA @ Pout 28dBm 9V
Frequency range: 2.4-2.5GHz
Receiving gain: 10dB±1
Transmission gain: 13dB±1
Input trigger power: 3dBm(min), 20dBm(max)
Max output power(P1dB): 36dBm(4W)
Noise figure: Less than 2.5dB
TX/RX switch time delay: Less than 1us
LED indicator: Transmitter: green, receiver: red
Operating ambient temperature: -40℃-70℃
Operating humility: Up to 95% rel. humidity
Item size: 8.2 * 5 * 2.1cm / 3.22 * 1.96 * 0.82in (L * W * H)
Item weight: 181g / 6.39oz
Applications:
Wireless LAN 802.11b/g/n access point clients.
Based on the 2.4GHz WLAN wireless base stations.
Based on the 2.4GHz WLAN wireless bridges.
Indoor distribution systems (multi-play) in the combiner.
Based on ZigBee, BT protocol wireless devices.
Installation Instructions:
Step1: Disconnect the power supply to AP/Router.
Step2: Detach the antenna from your certified wireless AP/Router.
Step3: Connect RG316 cable(included) to the booster and AP/Router.
Step4: Connect the antenna to the other end of the booster.
Step5: Connect the power supply to the booster first and subsequently the AP/Router.
Plug Type: EU Plug, it applies to Indonesia, Germany, France, Spain, Italy and so on.
colour:black
size:8.2 * 5 * 2.1cm
Material:Plastic + metal

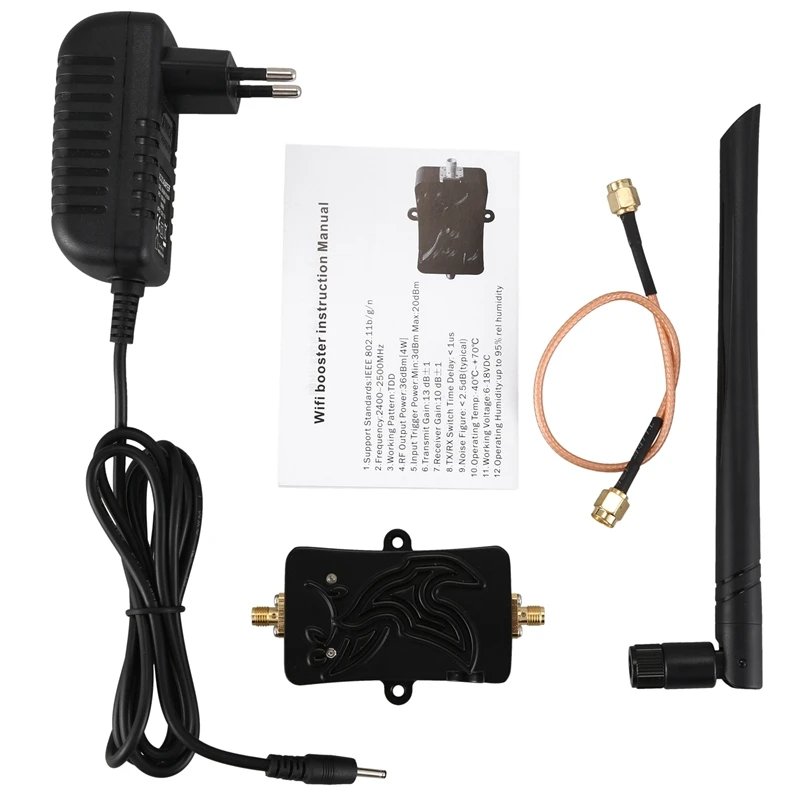

Package Contents:
1 * 4W signal booster

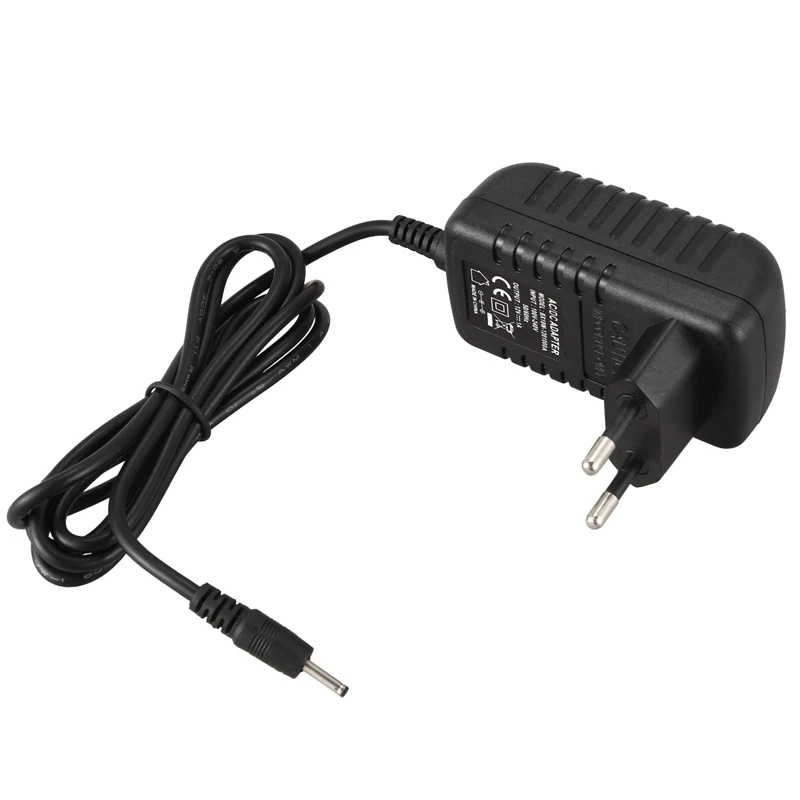

1 * Power adapter

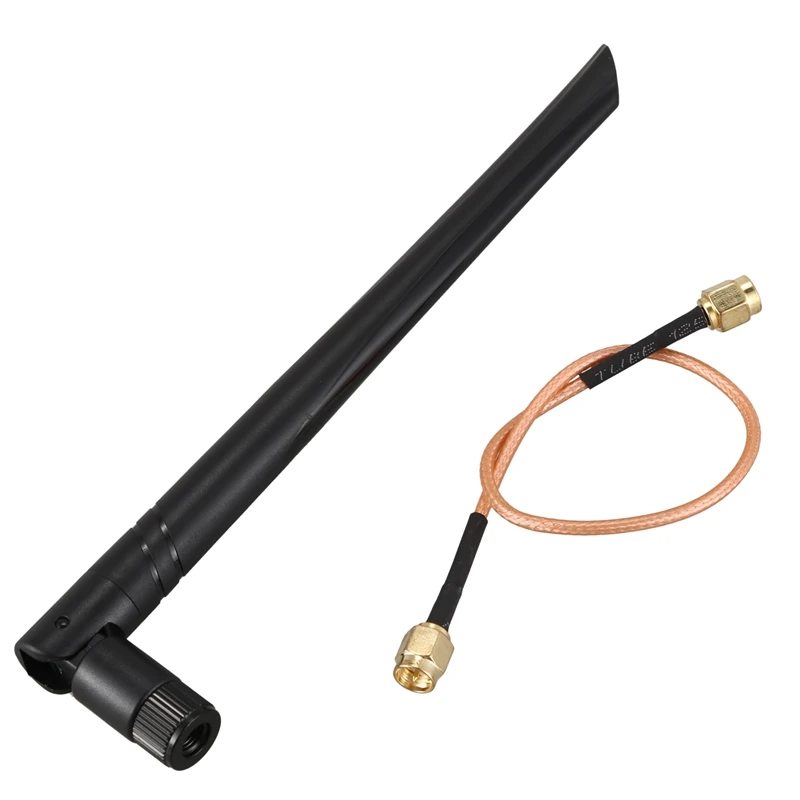

1 * 20cm RG316 cable
1 * 5dBi antenna
1 * User manual (English)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
