Order included :

4pcs (0-1000mm )DRO Magnetic Scake Kit

1* 4 Axis LCD digital Readout

4* Mganetic scale (0-1000mm ,5um Resolution. 3 meter cable length  )

1* Suitable Plug

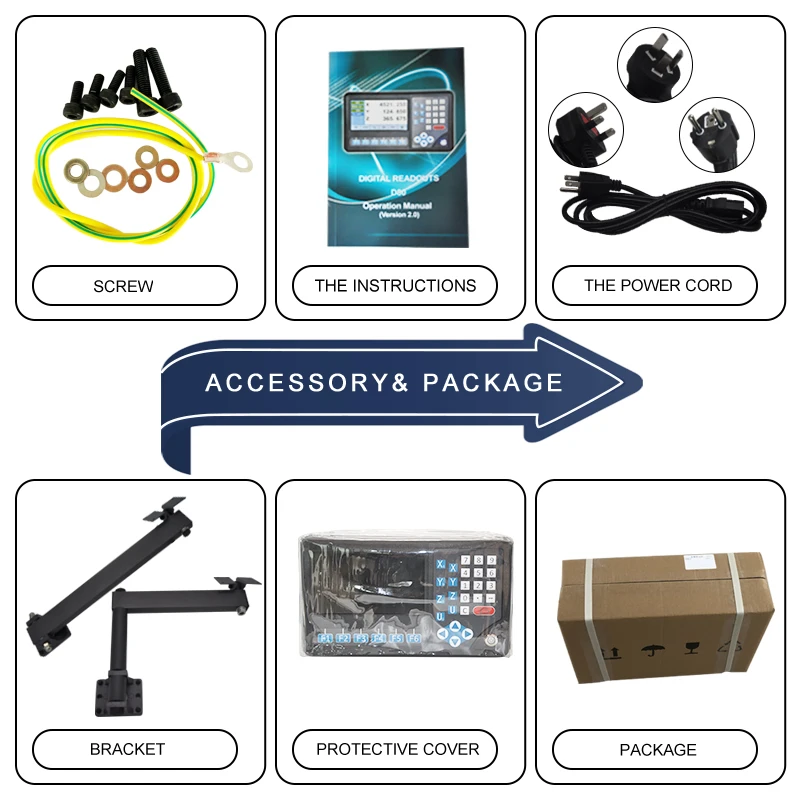

All of installation accessory are included  (eg ,mountin plate ,bracket ,little wiring.screw .. )

Travel length (LO): Option :

Slim Magnetic Scale DMS5-150mm ,200mm ,250mm ,300mm , 350mm , 400mm ,

Standard model  DMA5-450mm ,500mm ,550mm ,600mm ,700mm , ,800mm , ,900mm , ,1000mm

Pls choose 4pcs magnetic scale from the above length

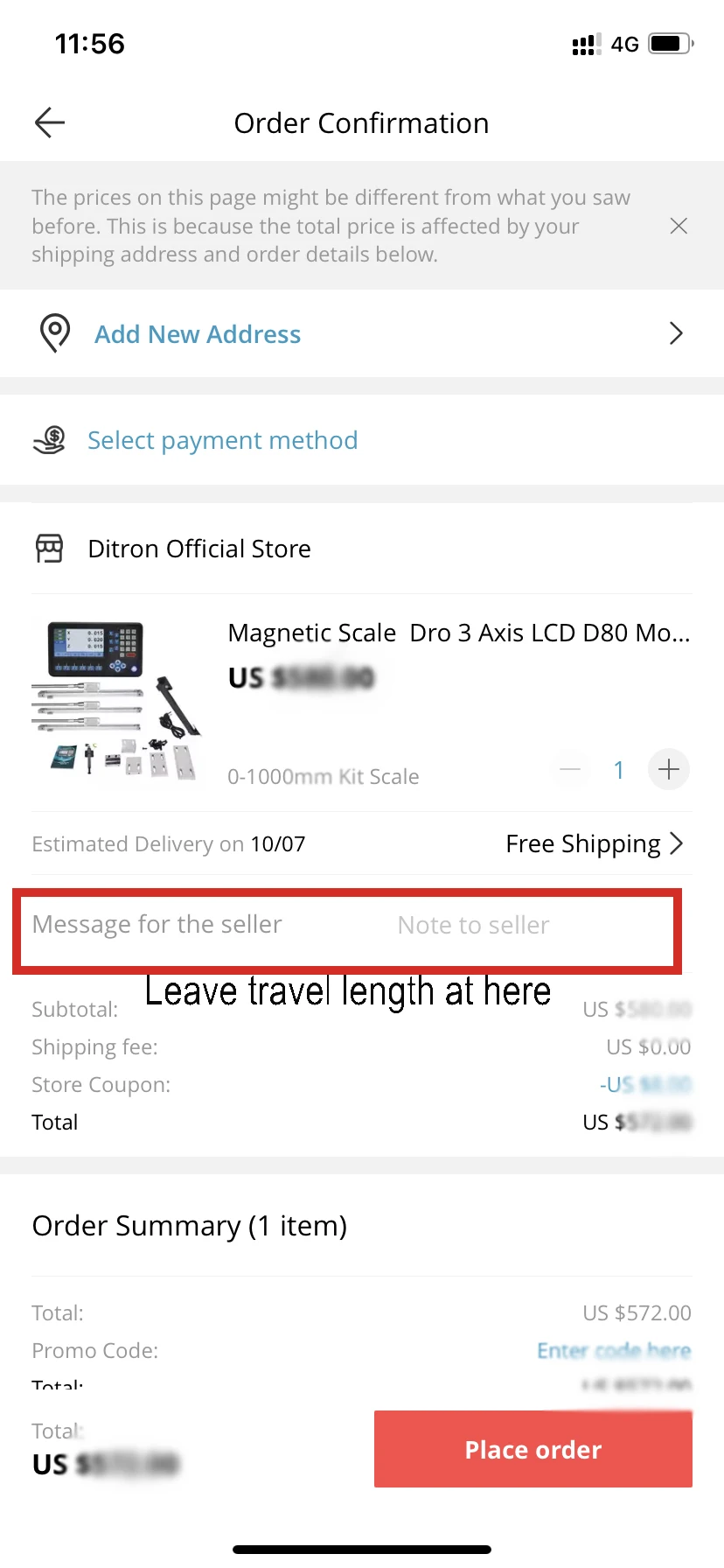

If you need customized travel length ,Pls contact us seller

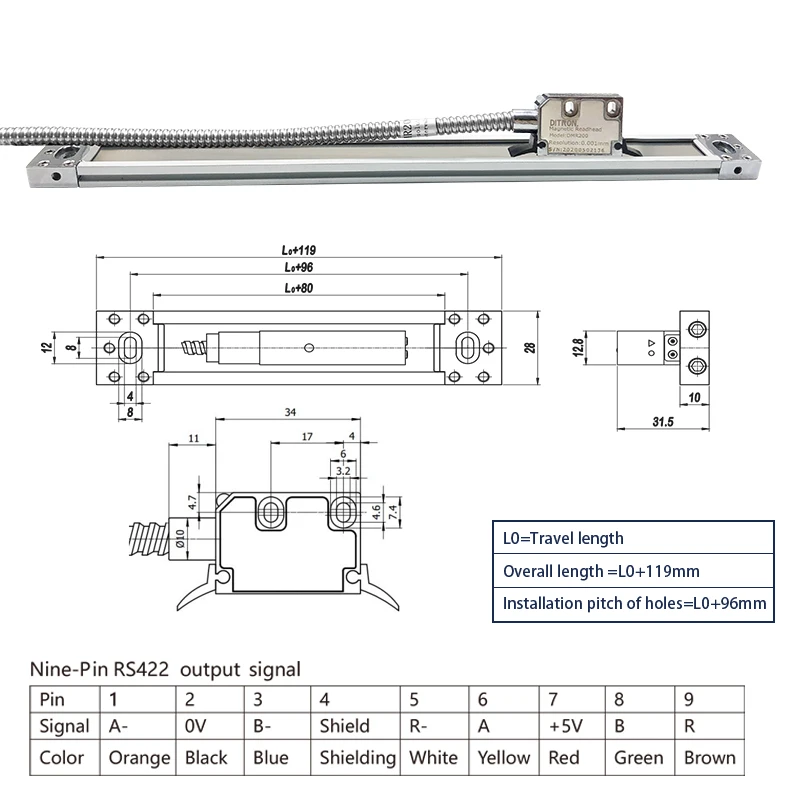

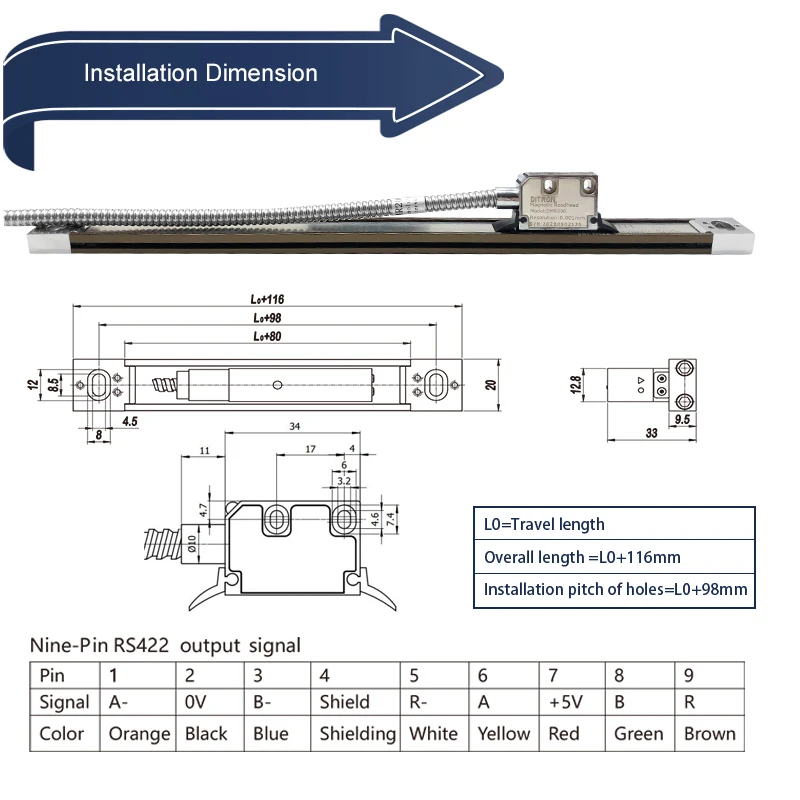

DMS MODEL . LO=TRAVEL LENGTH

DMA   model

Technical Parameters:

If magnetic scale over 1100mm, we will cut thealuminium profileto the suitable length ,After you received it , Combine it together.

【HIGH PERFORMANCE】- The lathe readout adapts the sensor with a glass precision metrology grating as the measurement reference, characterized by high scanning frequency, quick graphic machining, and low measuring error; users can preset the parameters, the repeatability of the measure is more stable.

【LCD & PREMIUM QUALITY】- The dro for lathe features LCD screen. The display effect is relatively natural. The service life is longer; the grating digital display body is made of high-quality plastic, which has high reliability and durability, corrosion resistance, and scratch resistance.

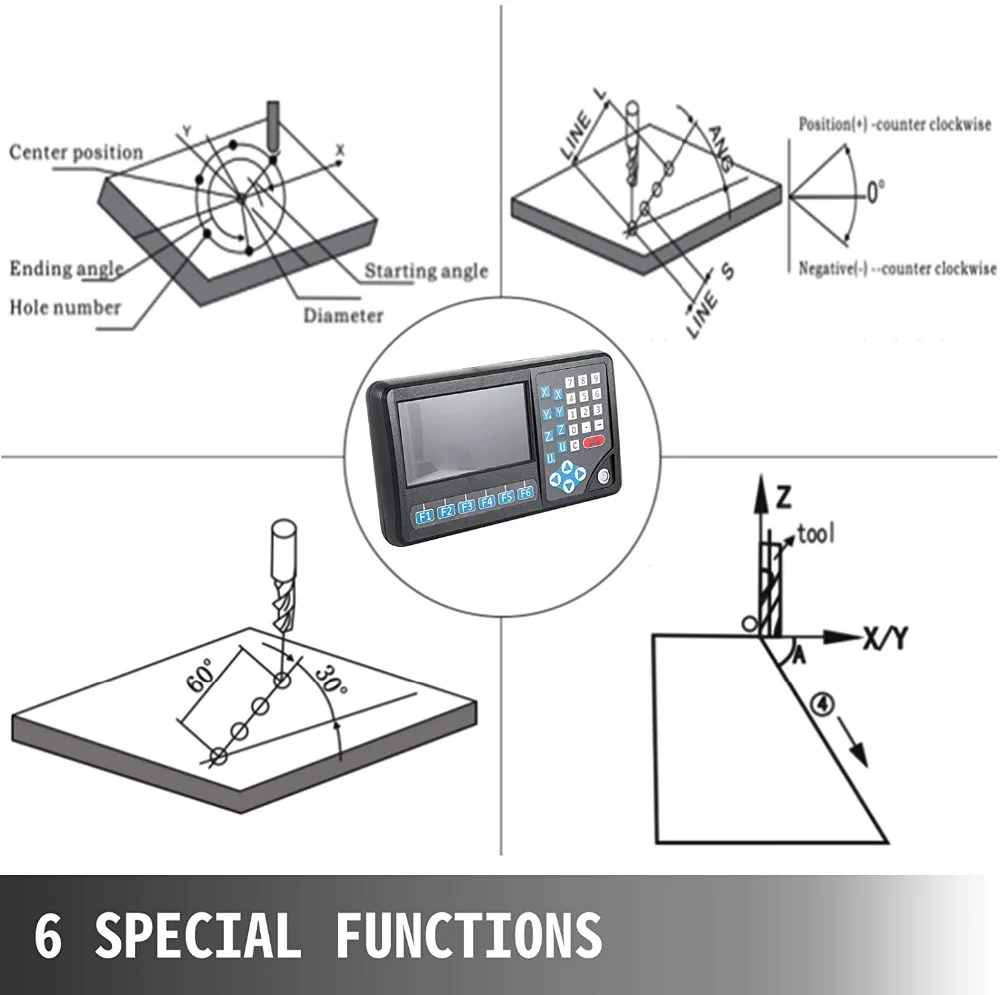

【INTELLIGENT FUNCTIONS】- The digital readout display meter system is equipped with a variety of intelligent functions: SDM 200 sets memory, bevel processing, power-off memory, circumference drilling, oblique line drilling, 1/2 centering, also a calculator is equipped for more convenient usage.

【BRACKETS & SCREW SET】- All accessories are included for easy installation and operation, two brackets, one screw set, one cable, individualized components, easy to install and operate, and more convenient for users to maintain.

【WIDE APPLICATION】- The digital readout is applicable for millers, lathes, boring machines, grinding machines and EDM, video measuring machines, movement control, position monitoring, coordinate Measurement.

DRO D80 Technical Parameter Sheet

Resolution

0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm ...

Display Screen

7inch LCD

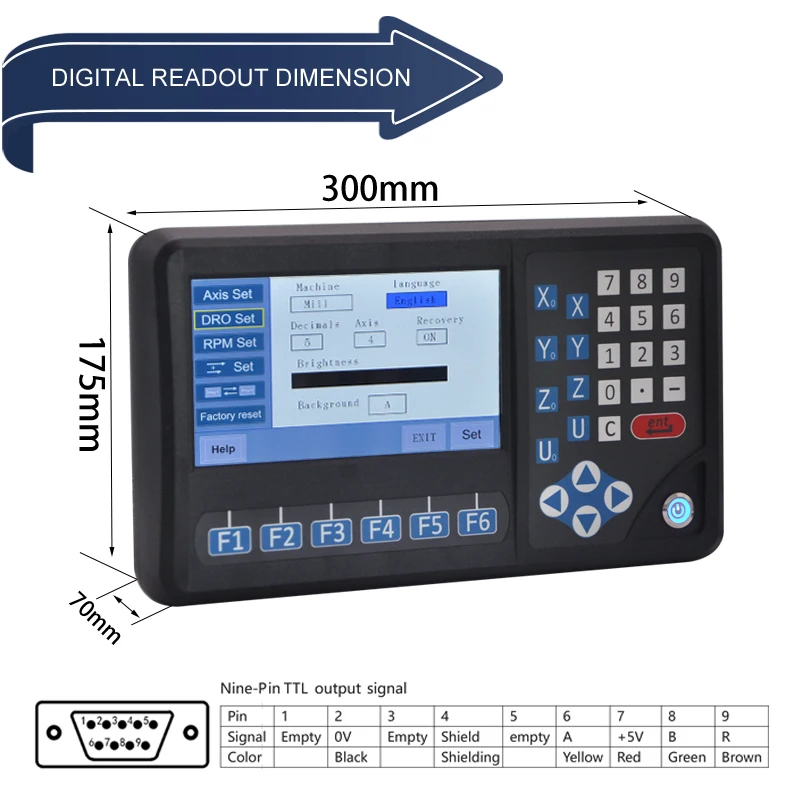

Display Case Size

300X180X75mm

Axis

1

2

3

4

5

Signal

TTL/RS422

Input frequency

<5MHZ

Voltage range

AC 80~260V (50~60HZ)

Power Dissipation

15W

Working temperature

'-10~60℃

Operating keyboard

Mechanical Keypad

Material of Case

Plastic

Application Suggested

Particular for Milling, Lathe, Grinding, EDM

Product Feature

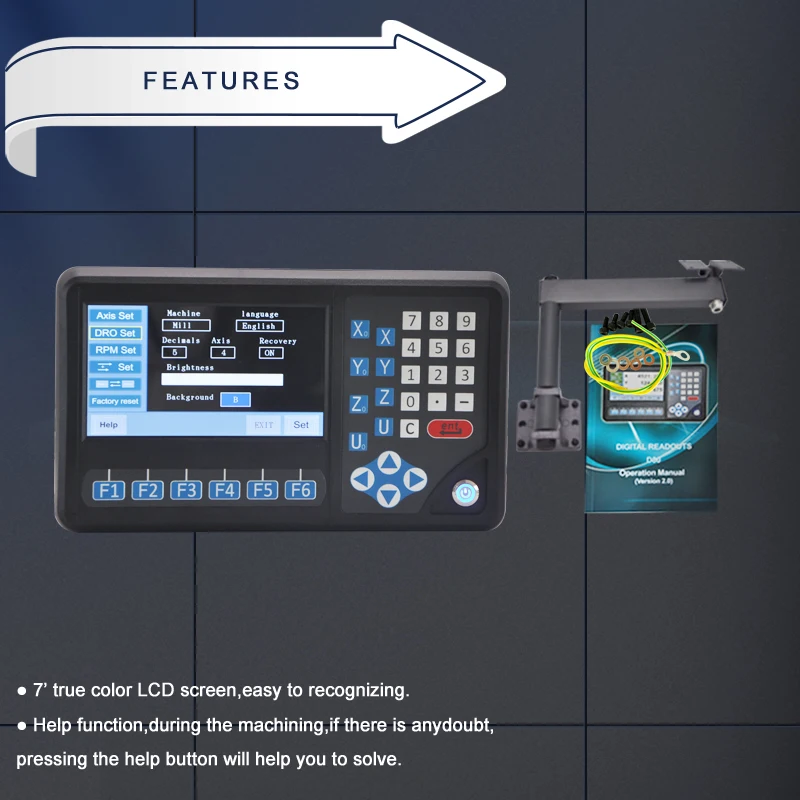

1. 7" super LCD screen, easy to recognize

2. Up to 5 axis input to work for high precision tool machining.

3. More than 10 drawings for different tools can be selected to make the machining much more convenient.

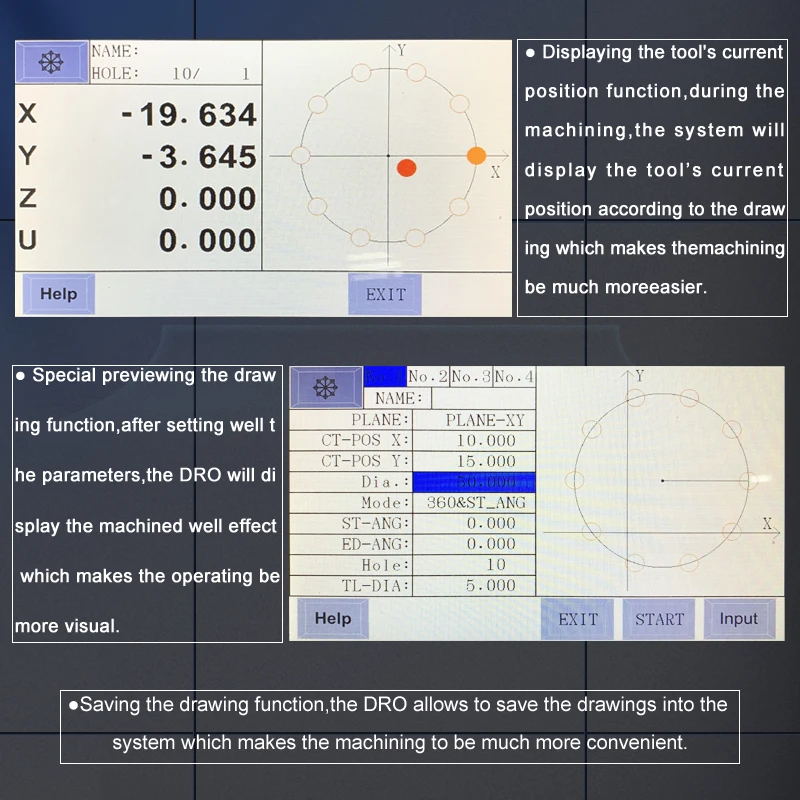

4. Special previewing the drawing function,after setting well the parameter ,the Dro will display the machined well effect which makes the operating be ,ore visual

5.Custom setting for the shortcut keys,operate can set the shortcut keys according to his operating habit

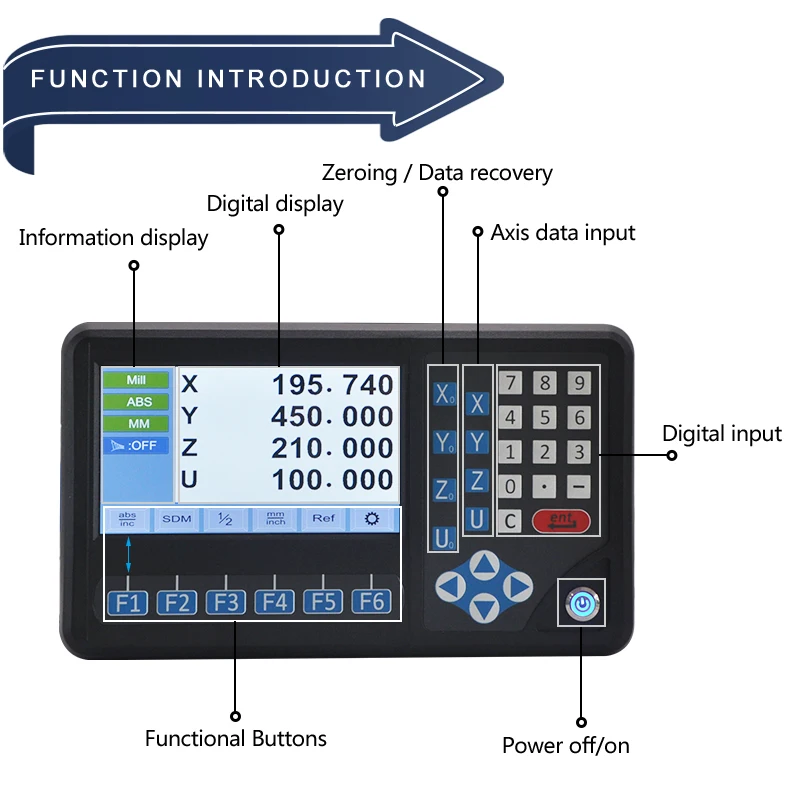

Basic Functions

Zeroing, Data Recovery

Encoder Selection

Input Coordinate

Resolution Setting

Display in Metric British Units

Linear Compensation

Power Off Memory Function

Counting Direction Selection

ABS/INC Coordinate

200 sets of SDM Coordinate

Ref Ruler Storage Function

Non-linear Compensation

Calculator

1/2 Function

Sleeping Function

Special Functions

PLD Function

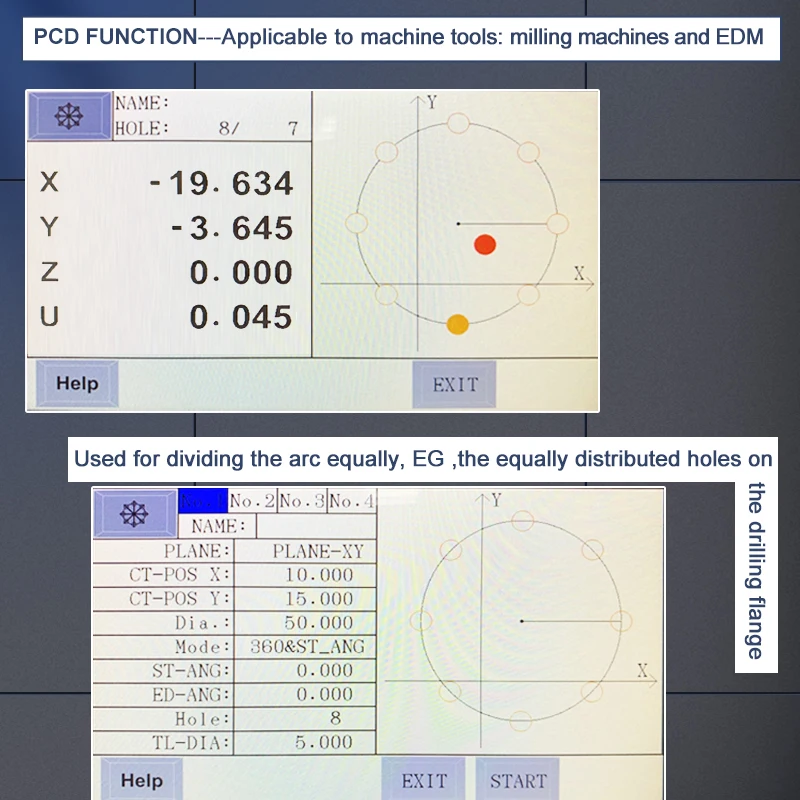

PCD Function

Simple R Function

Smooth R Function

Bevel Machining Function

Rectangle Chambering Function

Preview Drawing

Tool Location Display

Tool offsets

Preview Function

200 sets of Tools

Radius/Diameter Conversion

Y+Z Function (special for 3 axis lathes)         Digital Filtering

Taper Measuring Function

Optional Function

EDM Function

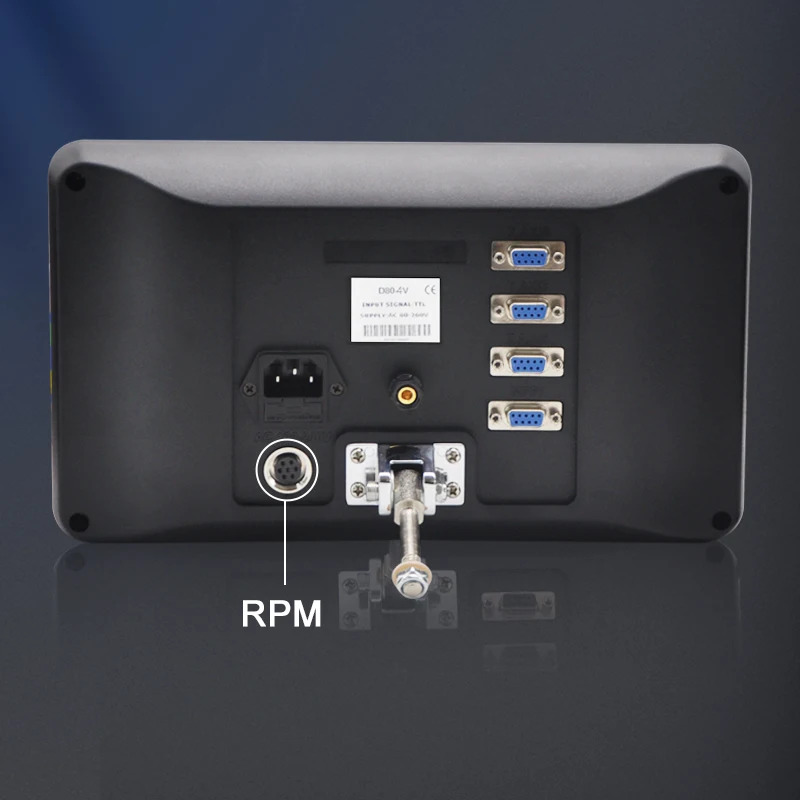

RPM

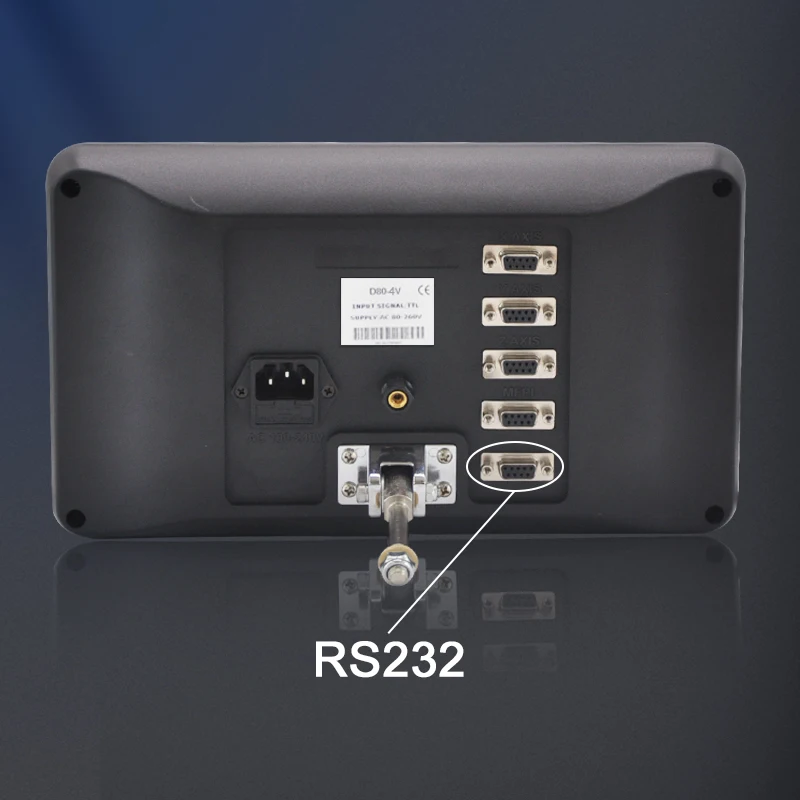

RS232
