Use direct digital synthesis (DDS) technolohy to produce accurate and stable waveforms. Generate accurate, stable, pure and low distortion output signals.

Features:

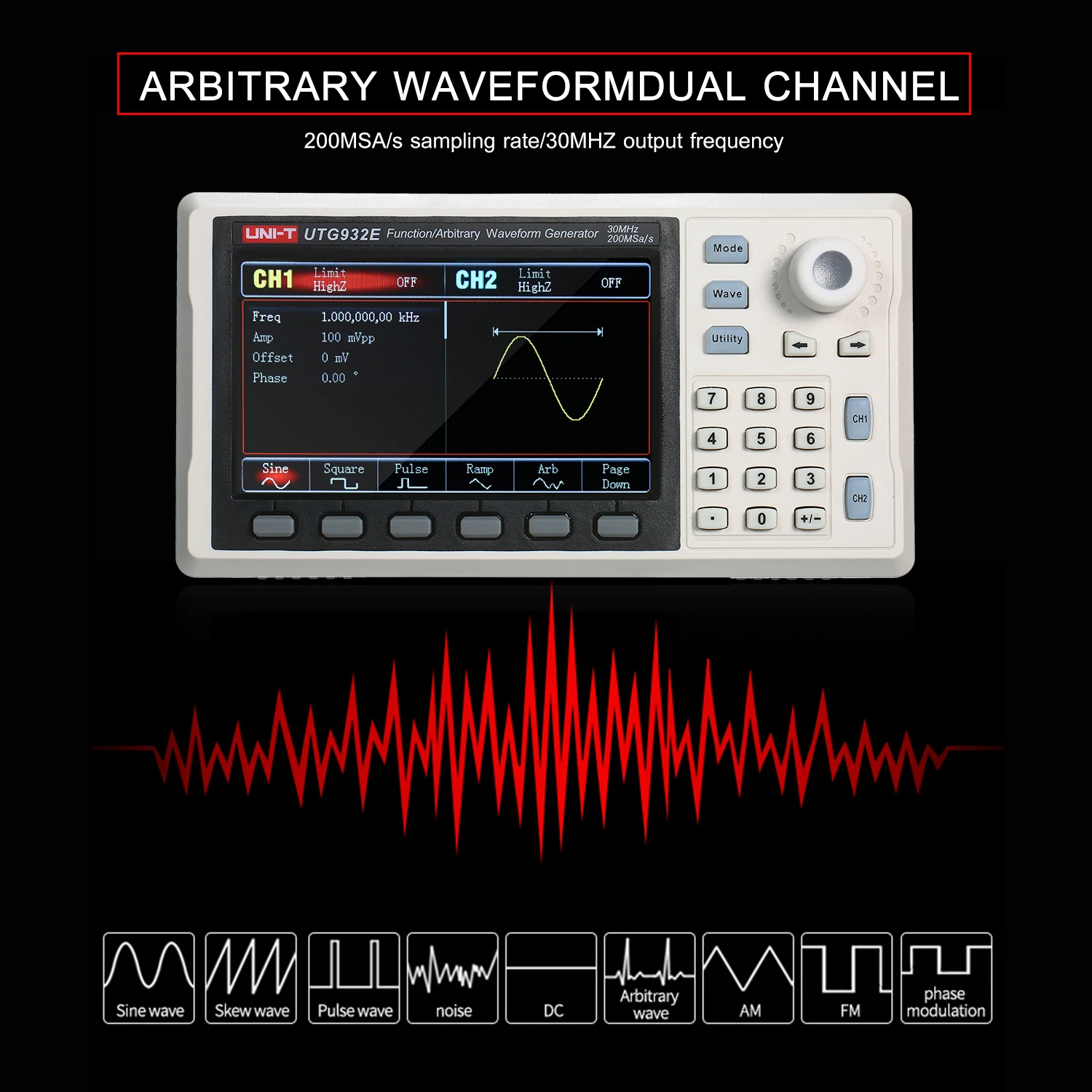

Two equivalent-performance channels. Output frequency range: 1μHz-30MHz. Parameters can be repectively set on each channel.
Multiple output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary.
Use direct digital synthesis (DDS) method, sampling rate of 200MSa/s and vertical resolution 14 bits to produce accurate and stable waveforms.
Use 7-digits high accuracy and broad-band frequency counter that compatible with TTL level signal. Support frequency scanning and output, low jitter square wave output.
Supports the storage of 24 groups non-volatile arbitrary waveform.
Simple and useful modulation types: AM, FM, PM, FSK.
4.3 inches TFT LCD and standard configuration USB interface.

Note:
Do not expose the product to direct sunlight for a long time.
Do not place it in mist, liquid or solvent.

Parameters:
Channel: 2
Max frequency: 30MHz
Sampling rate: 200MS/s
Vertical resolution: 14 bits
Waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
Sweep modes: Logarithmic, linear

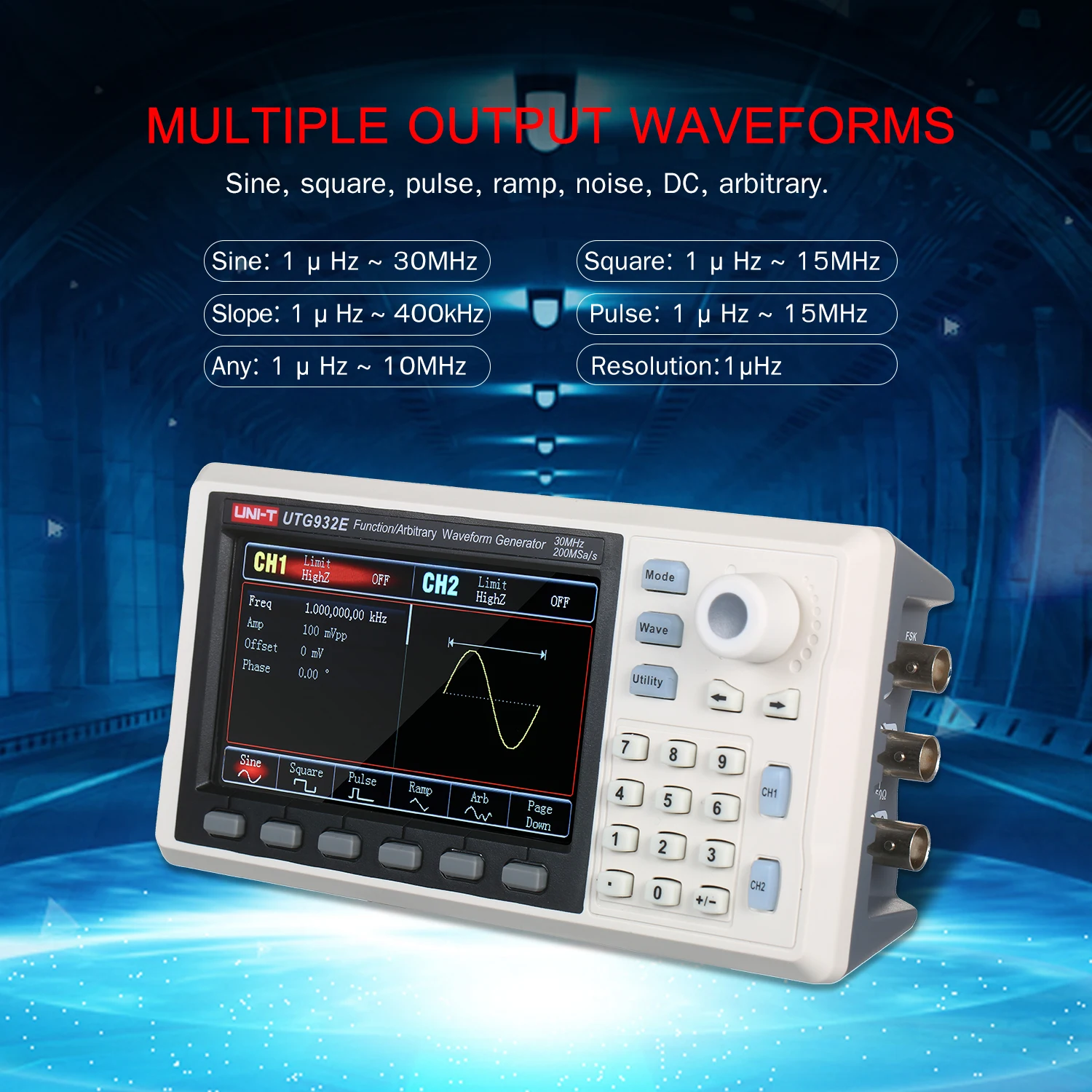

Frequency Characteristics
Sine: 1μHz~30MHz
Square: 1μHz~15MHz
Ramp；1μHz~400kHz
Pulse：1μHz~15MHz
Arbitrary：1μHz~10MHz
Resolution：1μHz
Accuracy：Within 90 days ± 50ppm, Within 1 year ± 100ppm, 18℃~28℃

Output Characteristics
Impedance: 50Ω/High Z
Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range (AC+DC): ±5V (50Ω); ±10V  (high Z)
Amplitude resolution: 1mV

Specifications:
Brand: UNI-T

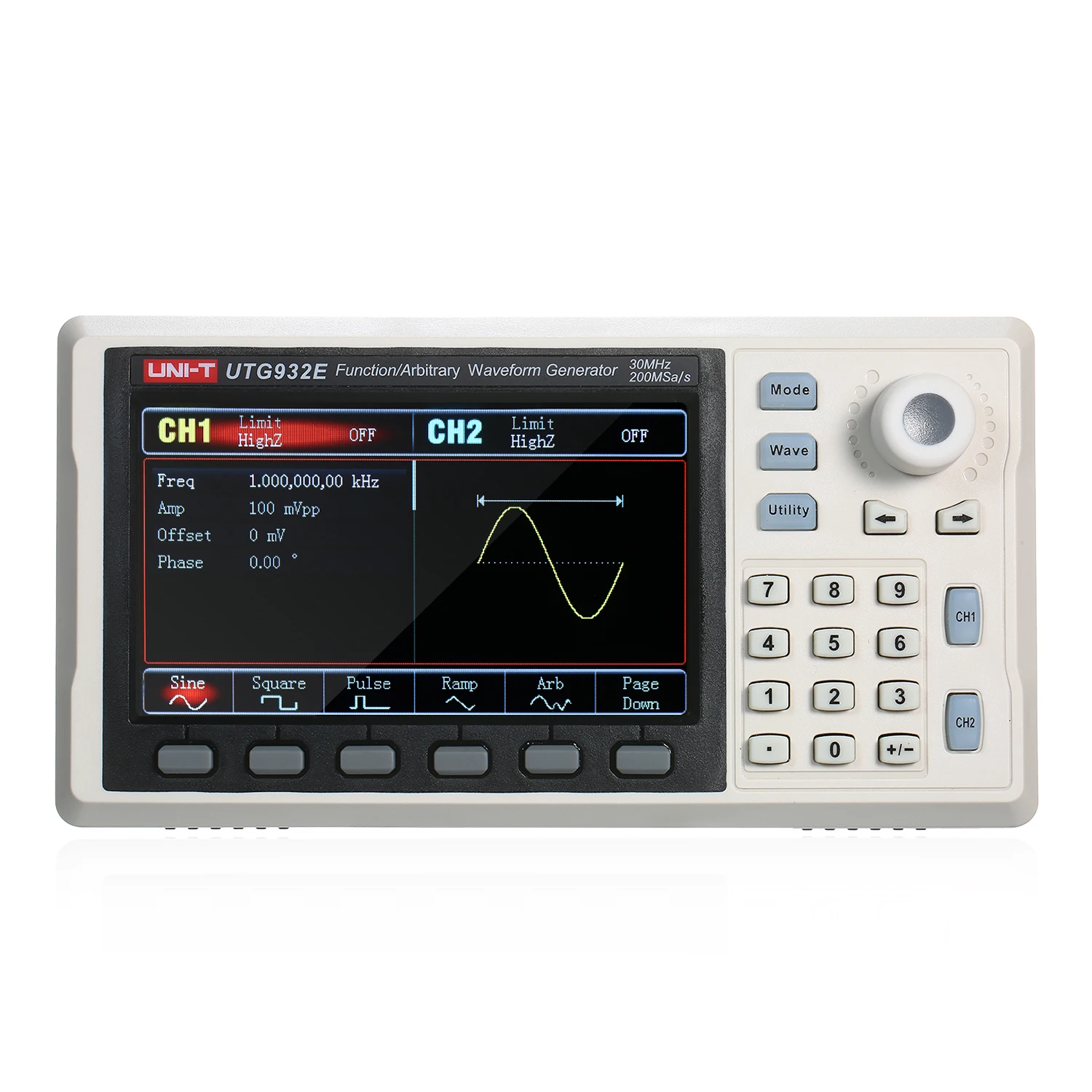

Model: UTG932E
Color: White
Material: ABS
Plug Type: US/EU Plug
Power：100~240V AC, 50Hz/60Hz

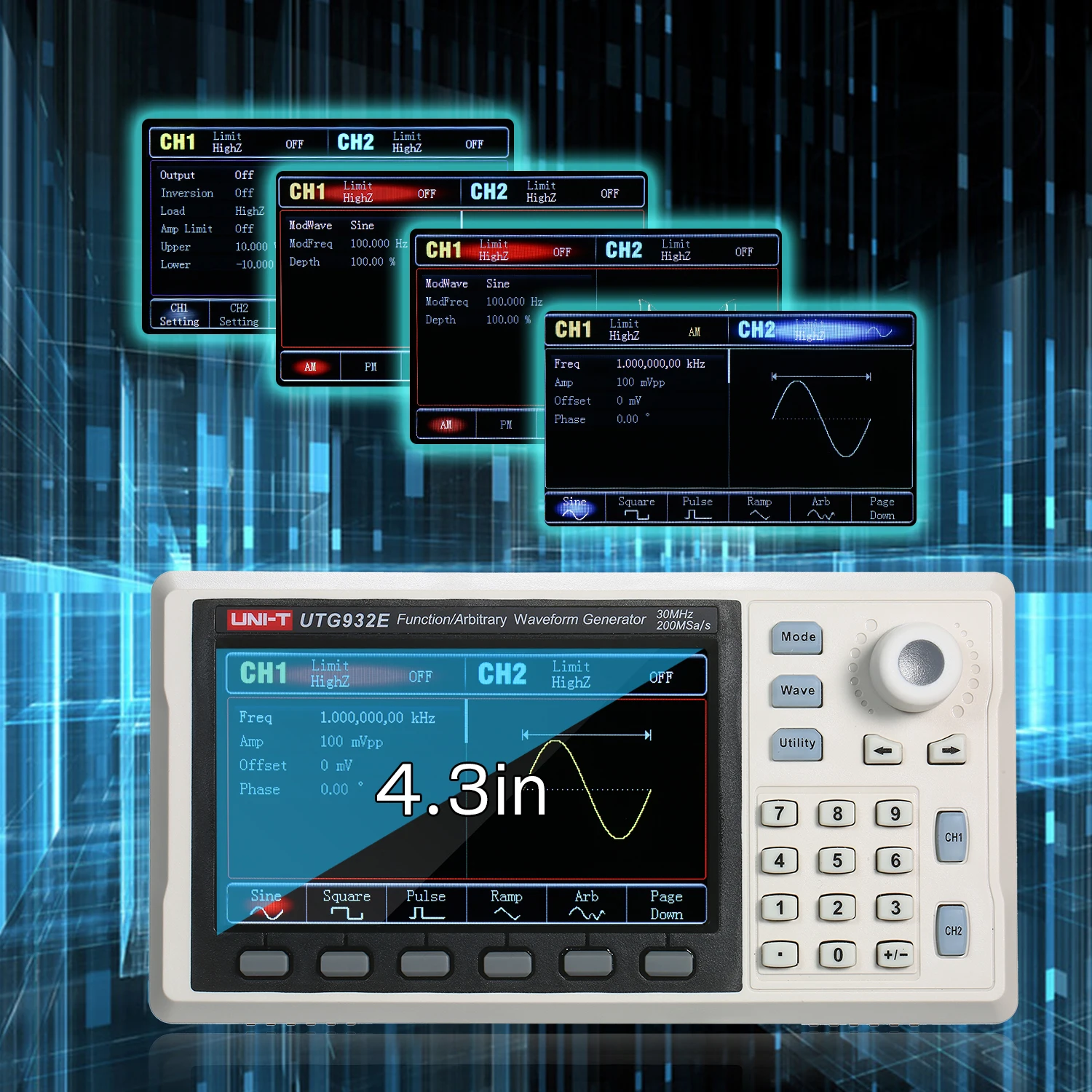

Display：4.3 inch TFT LCD (480×272)

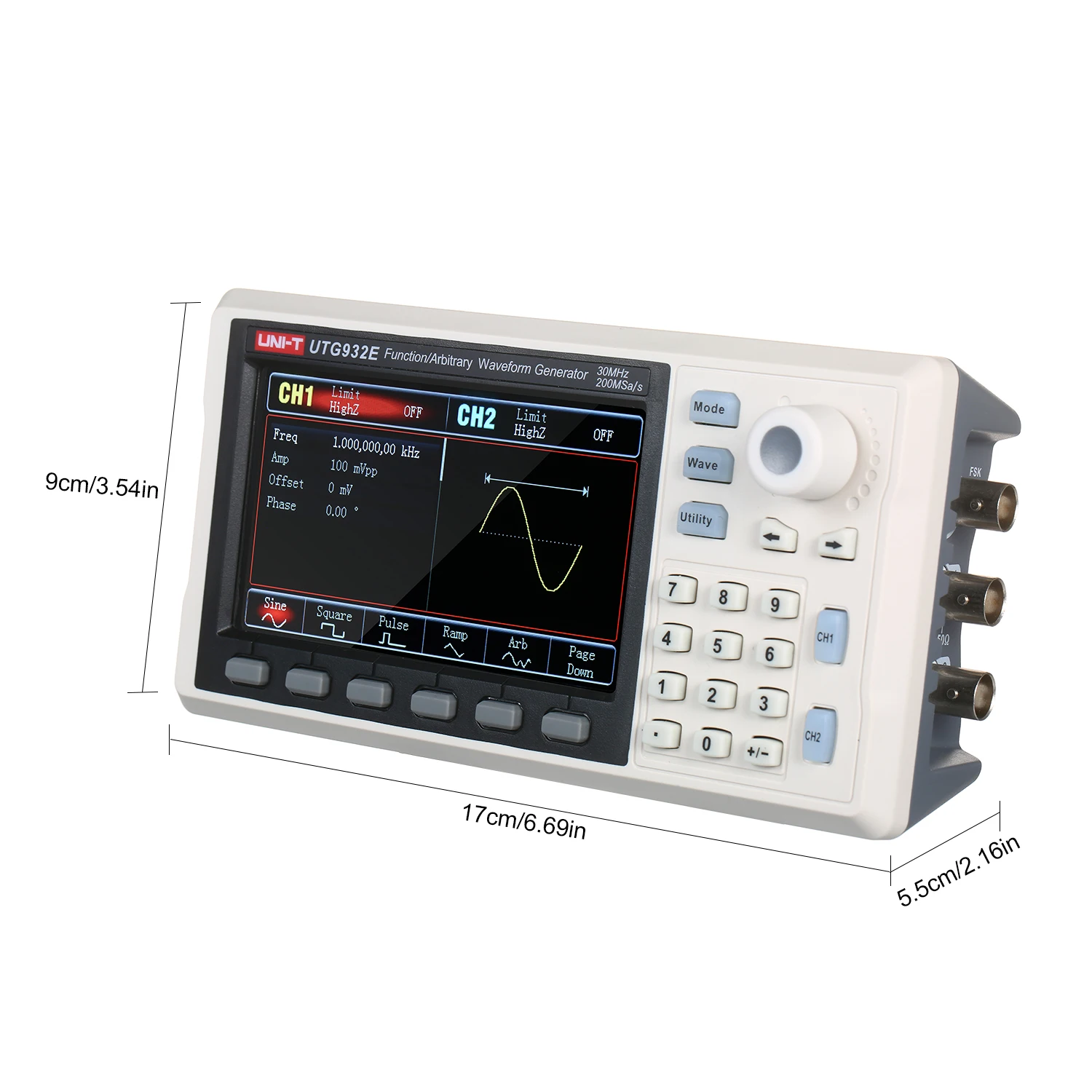

Item Size: 17*9*5.5cm / 6.69*3.54*2.16in
Item Weight: 364g / 12.83oz
Package Size: 20*17*10.3cm / 7.87*6.69*4.05in
Package Weight: 785g / 27.69oz

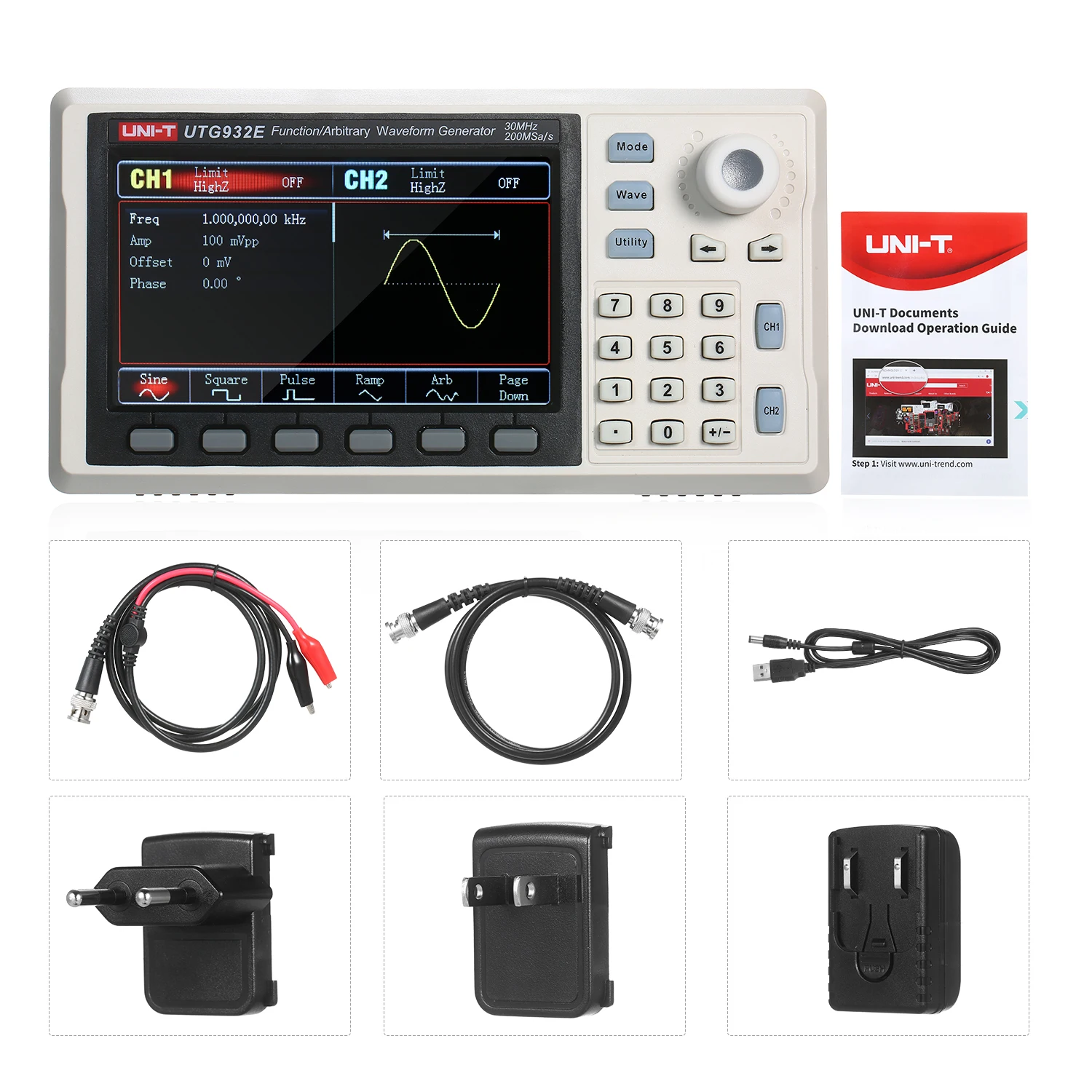

Pacing List:
1 * Signal Generator
2 * Alligator Clip
1 * US Plug
1 * EU Plug
1 * Switching Adapter
1 * Power Cord
1 * Coaxial Cable
