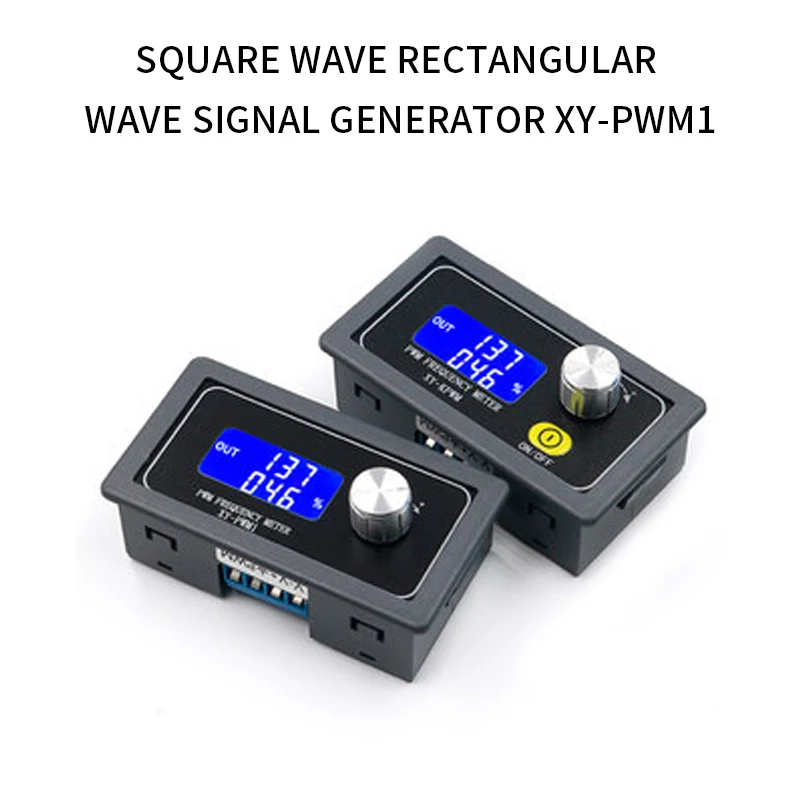

Signal Generator 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Module Square Wave Rectangular | Инструменты

Signal Generator 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Module Square Wave Rectangular | Инструменты

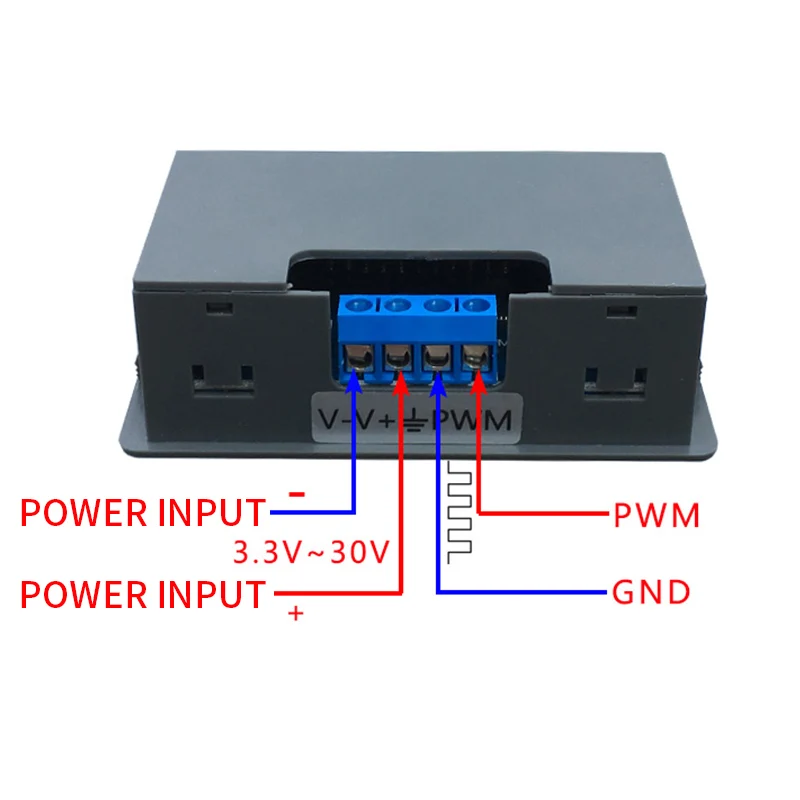

Work voltage: DC 3.3V-30V
Frequency range (Normal mode): 1Hz ~ 150KHz
Frequency Range (Precise mode): 1Hz ~ 15KHz
Frequency accuracy:  approx. 2%
Output current: About 5-30mA
Output Amplitude: Same to input voltage
Work Temperature: -20 ° C ~ 70 ° C
Size: 79*42*22mm
Color: black
Material: plastic

Features:
<< Range: The adjustable frequency range: from 1Hz to 150KHz.

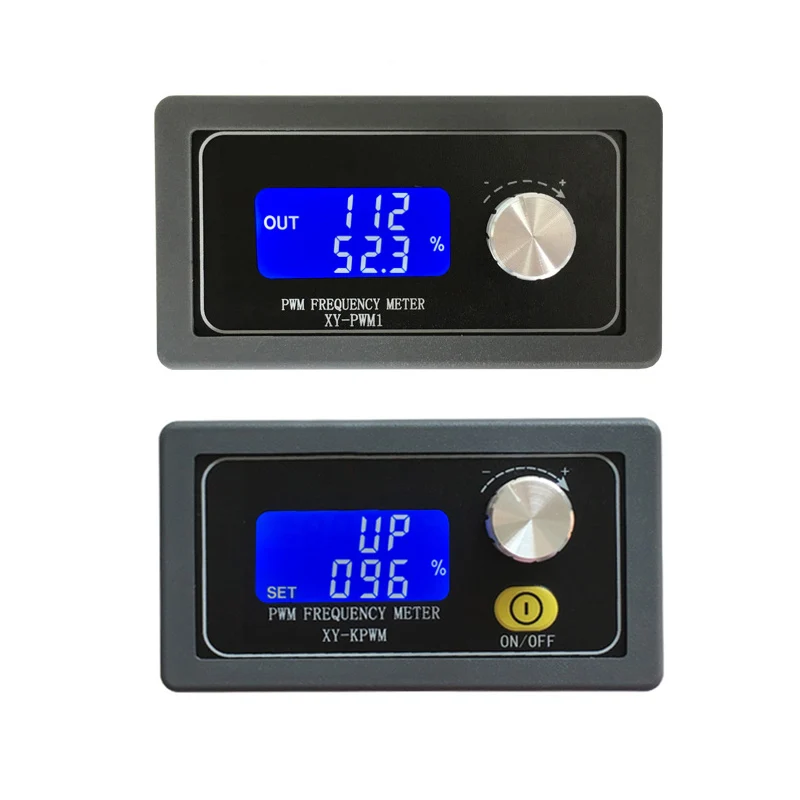

<< Clear LCD high definition Display: Display both frequency and duty cycle in more clear status. High precision detection.
<< Dual work mode. Support both frequency adjustment and duty cycle adjustment.
<< Power-down memory function: No need to set the data again after power-off. Knob supports lock function to avoid misoperation.
<< Application: Square wave signal generator, generating square wave signal for experimental development, generating square wave signal that controls the motor driver, and generating adjustable pulses for MCU Dimmer; Dimmer; Speed governor, and so on.

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.

Package list:
1 x  Signal Generator with/without switch
