HOT-Latest Version PORTAPACK for HACKRF ONE SDR Software Defined Radio + 0.5Ppm GPS TXCO 2.8 Inch LCD | Электроника

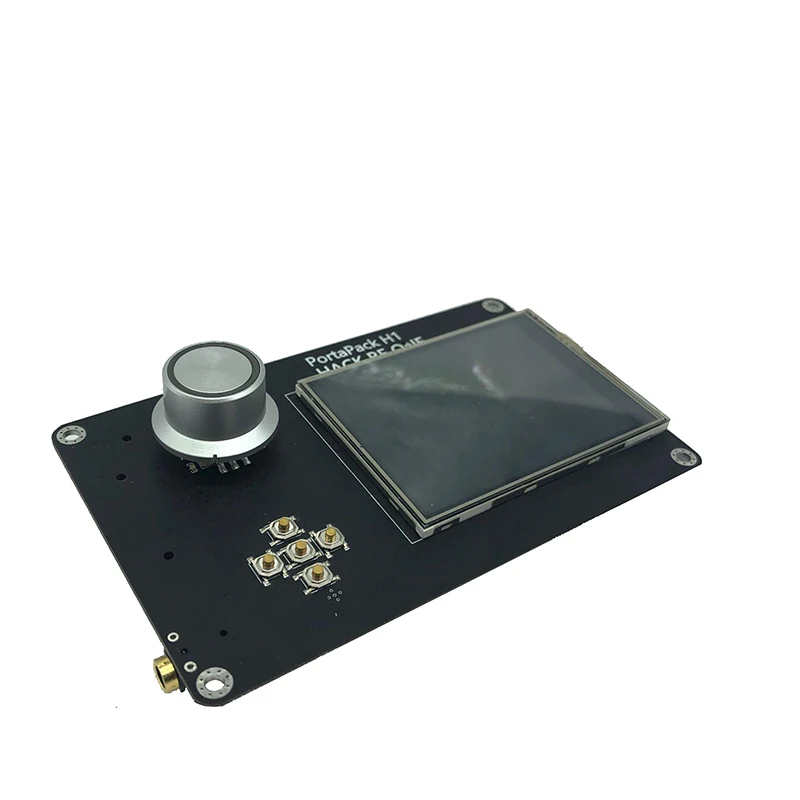

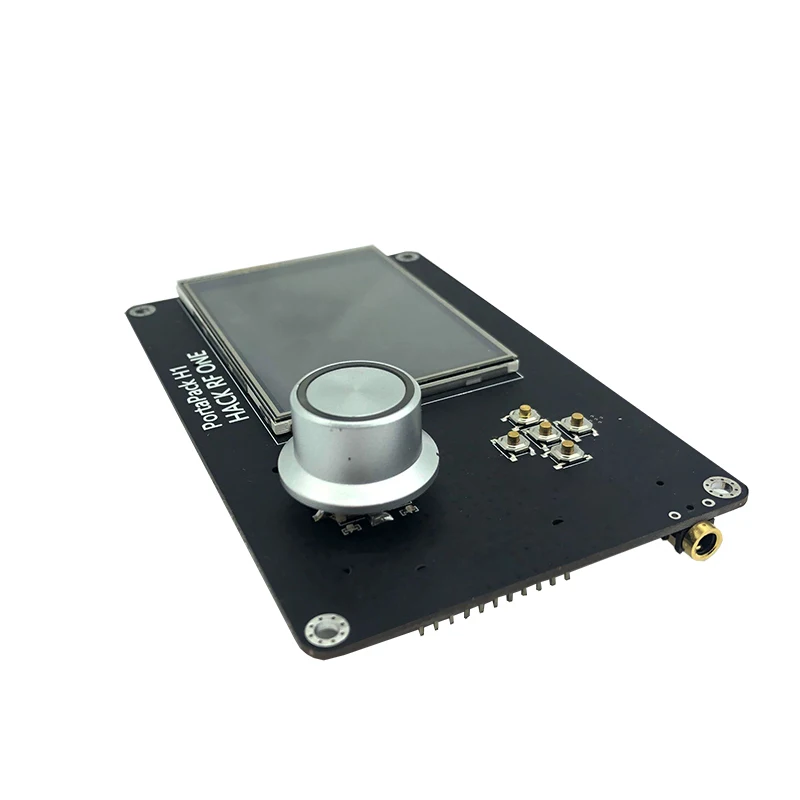

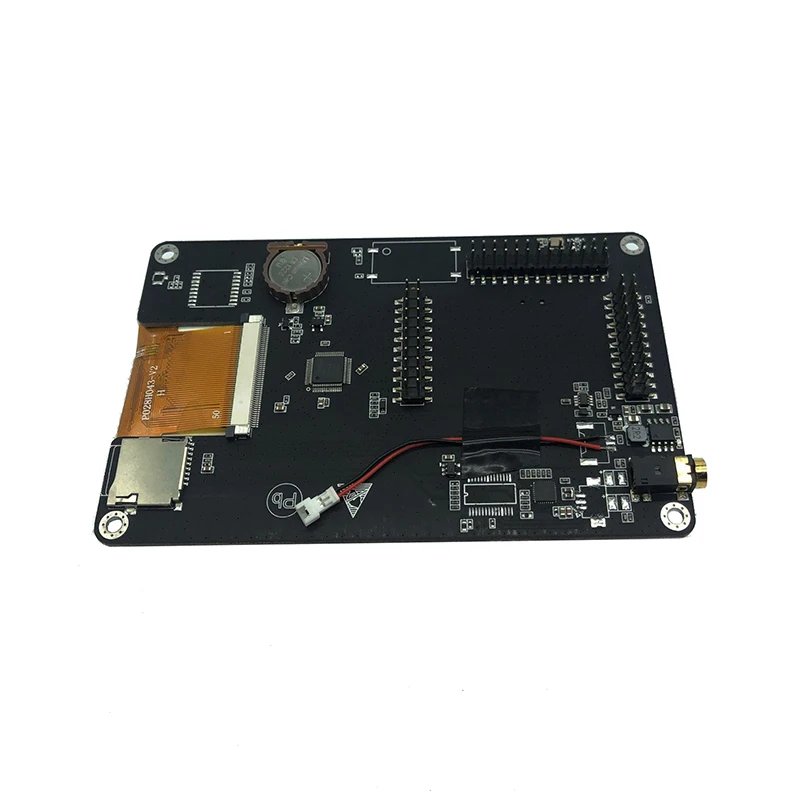

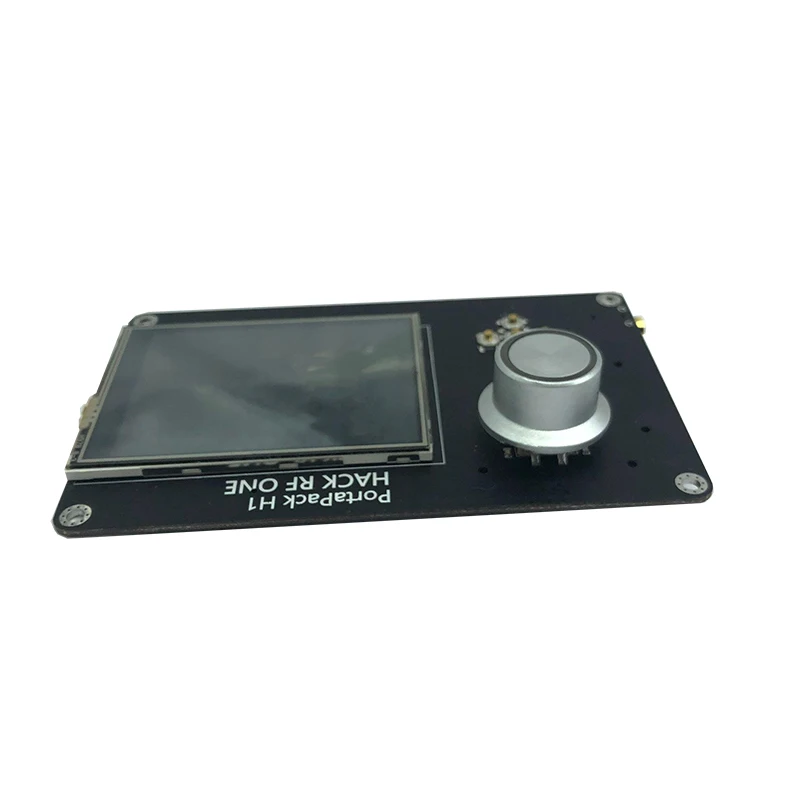

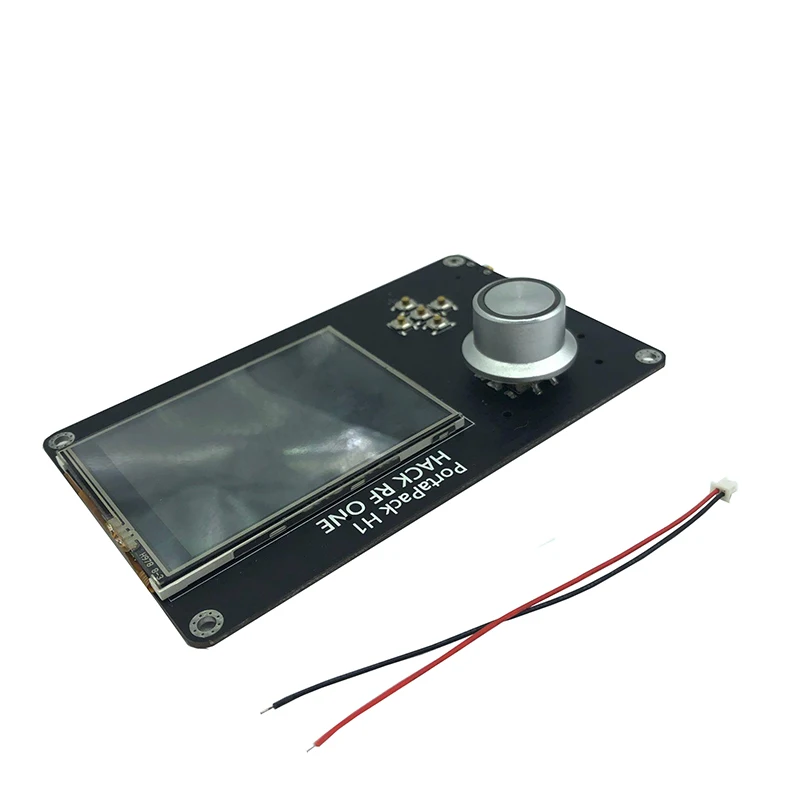

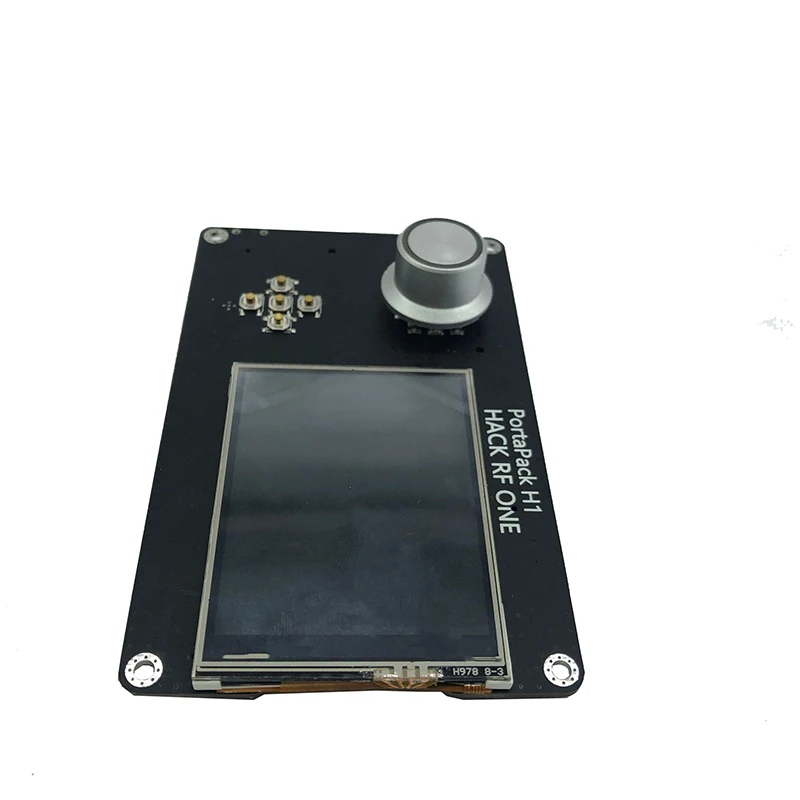

2020 new Hackrf extended touch screen 2.8 inch large screen (bring your own Hackrf) not include battery.
  With sound input and output function (ADC, DAC)   With TF card slot (storage data, playback data, frequency management)   Comes with TCXO high-precision clock (0.5ppm), the frequency is as accurate as the radio   New firmware automatically switches external TCXO (you can see the clock source is external in the menu)   Built-in CR1220 battery with RTC clock function (record current time when saving baseband file)   Support offline GPS simulation   Optional 2100 mAh lithium battery   Optional acrylic black case   2.8-inch touch screen, support battery charging (4.2V), (optional battery) long press the middle button (3 seconds) to turn on / off, use the MIC of Apple or Android headset to send voice, and the headset can listen to sound   After you get it, please download the compression package of this shop, first brush the hackrf to support the extended firmware, and then install the expansion board and battery to work.   2020/3/34 Added 2100mAh large capacity battery, longer working time!   //www.kechuang.org/t/84860?last_page=true&highlight=867442   B station introduction //www.bilibili.com/video/BV1sE411G7W9   Features supported as of 12/3/2019:   App / mode specifics Receivers   ADS-B receiver   ACARS receiver   AIS   AFSK   Analog audio receiver   POCSAG receiver   Radiosonde receiver   TPMS   APRS   DMR framing   SIGFOX   LoRa   SSTV   TETRA framing   Transmitters   ADS-B transmitter   APRS   Xy / Ep transmitter   Jammer   Key fob   LGE tool   Microphone transmitter   Morse transmitter   Burger pagers   LCR transmitter   Close Call   Signal generator   Frequency manager   OOK encoders   POCSAG transmitter   RDS transmitter   Soundboard   SSTV   TEDI / LCR AFSK   TouchTunes remote   Custom remote   Other   Play Dead mode   Pitch RSSI output   Stealth mode   Unistroke text entry   English introduction:   The PortaPack H1 makes the HackRF One software-defined radio portable.   It adds an LCD touchscreen, user interface navigation controls, audio output and input, micro SD card slot, 2.5 PPM crystal oscillator, and real-time clock battery backup, Speaker, Li po battery Charger and Center key power on / off function (long press 3-4 sec).   The PortaPack firmware provides a user interface and necessary signal processing to do many useful things without a computer.
