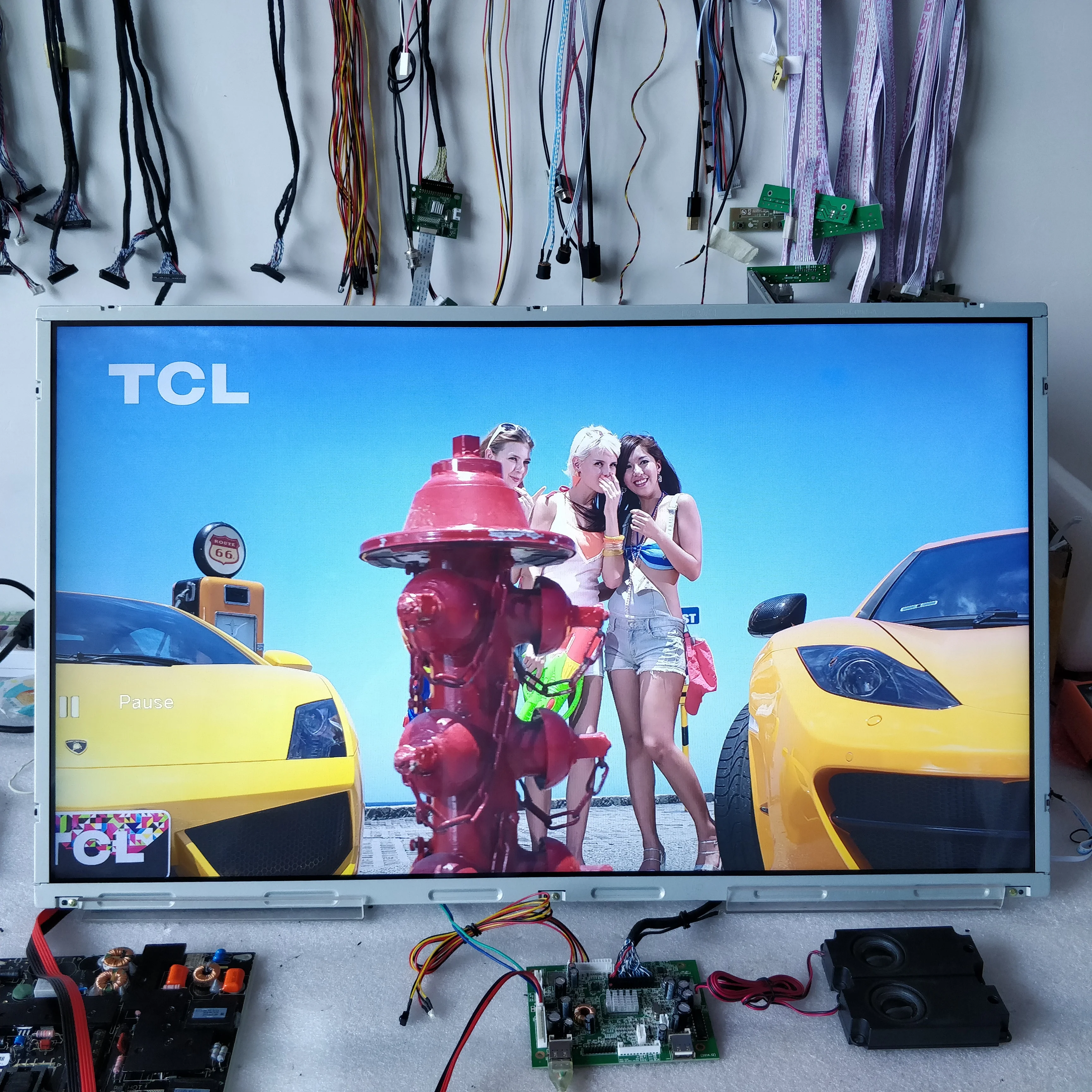

DIY 32 inch lcd advertising machine kits with 1920*1080 400 cd support Android | Screens

DIY 32 inch lcd advertising machine kits with 1920*1080 400 cd support Android | Screens

The PCBA’s firmware is base on Android OS 5.1.1 or Android OS 7.1.1, with Rockchip RK3288 CPU which is Quad-Core and 1.8GHz, With 4K Ultra HD decoding

With small size, high effective, low consumption,low price cost. Platform Support LVDS and EDP output for FHD LCD panel, support HDMI 2.0 output for 4K UHD monitor,infrared remote control, touch screen, keyboard, mouse camera,Printer

bar-code scanner, etc. It is convenient to use it for digital signage , All-in-one field application.

CPU

Rockchip RK3288, Quad-Core, 1.8GHz

GPU

Mali-T764

RAM

2GB DDR3(4GB is optional)

Internal Storage

8GB EMMC Flash (Extensible)

Decoding Ability

MAX. 2160P(3840X2160@60HZ)

OS

Android 5.1.1 or Android 7.1.2

Network

Support RJ45 Ethernet, 2.4GHz WIFI,4.0 Bluetooth

Video Format

RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4, etc

Audio Format

MP3,WMA,APE,FLAC, etc

Image Format

BMP/JPEG/PNG/GIF, etc

USB2.0 Port

5 USB HOST,1 USB OTG/HOST

Ethernet

10M/100M self-adaption Ethernet

LVDS Output

Support 60Hz 6Bit/8Bit Single or Dual Channel LVDS

Max Resolution :1920X1080@60Hz

eDP Output

Support 1/2Lanes eDP signal output

Max Resolution :1920X1080@60Hz

Power

For Board

12V or 12V/5VSB/STB

To LCD panel

3.3V/5V/12V

HDMI Output

Support HDMI2.0 4K@60HZ output

Audio Output

L&R audio-out（2X8Ω/5W speaker）

Earphone(3.5mm Audio jack or PH 4pin Header)

RTC

Real-Time Clock Available

Timer

Available

System Update

Support USB/TF Card update

2.Specificationo  of the lcd panel

3.Application
