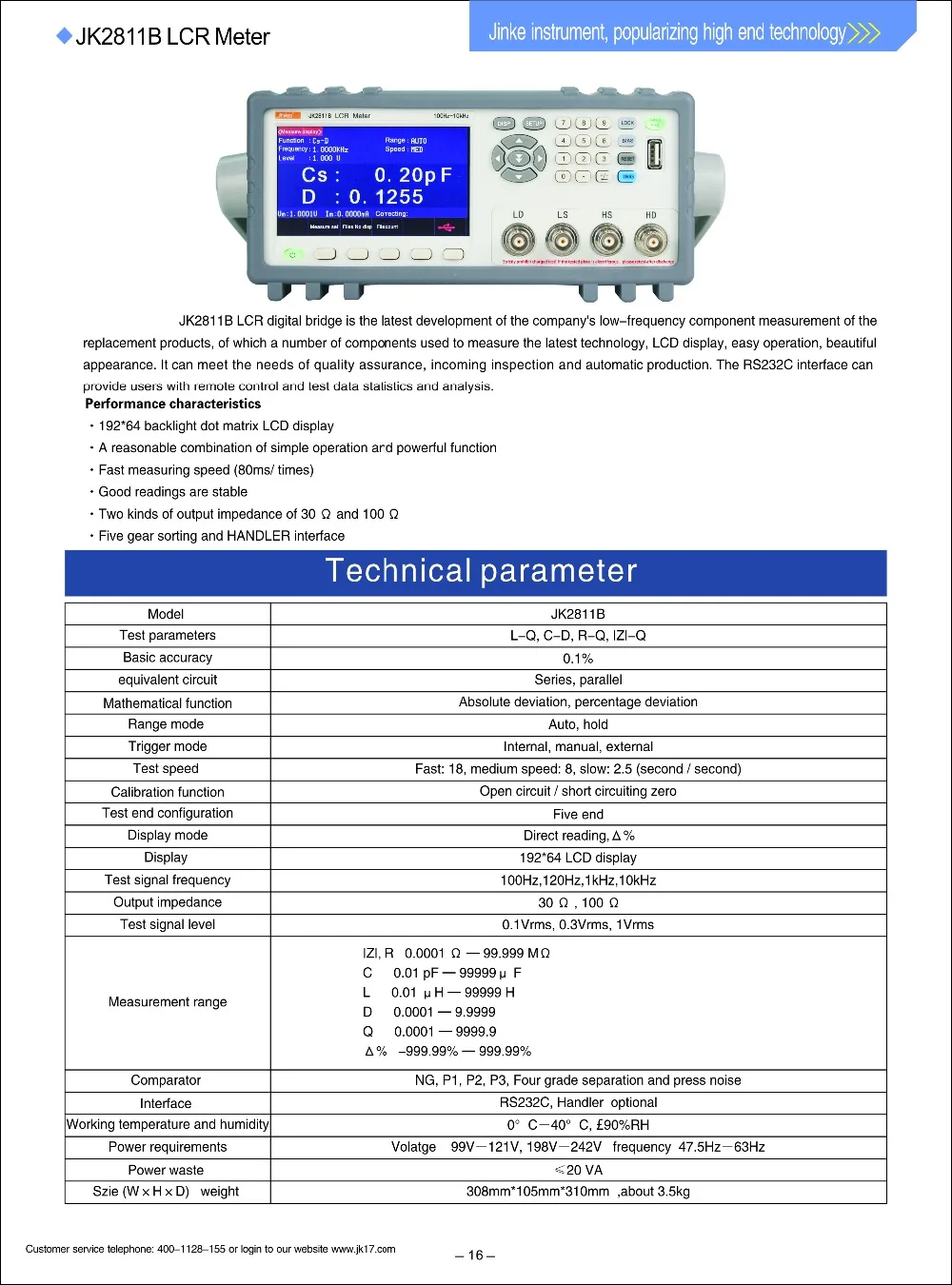

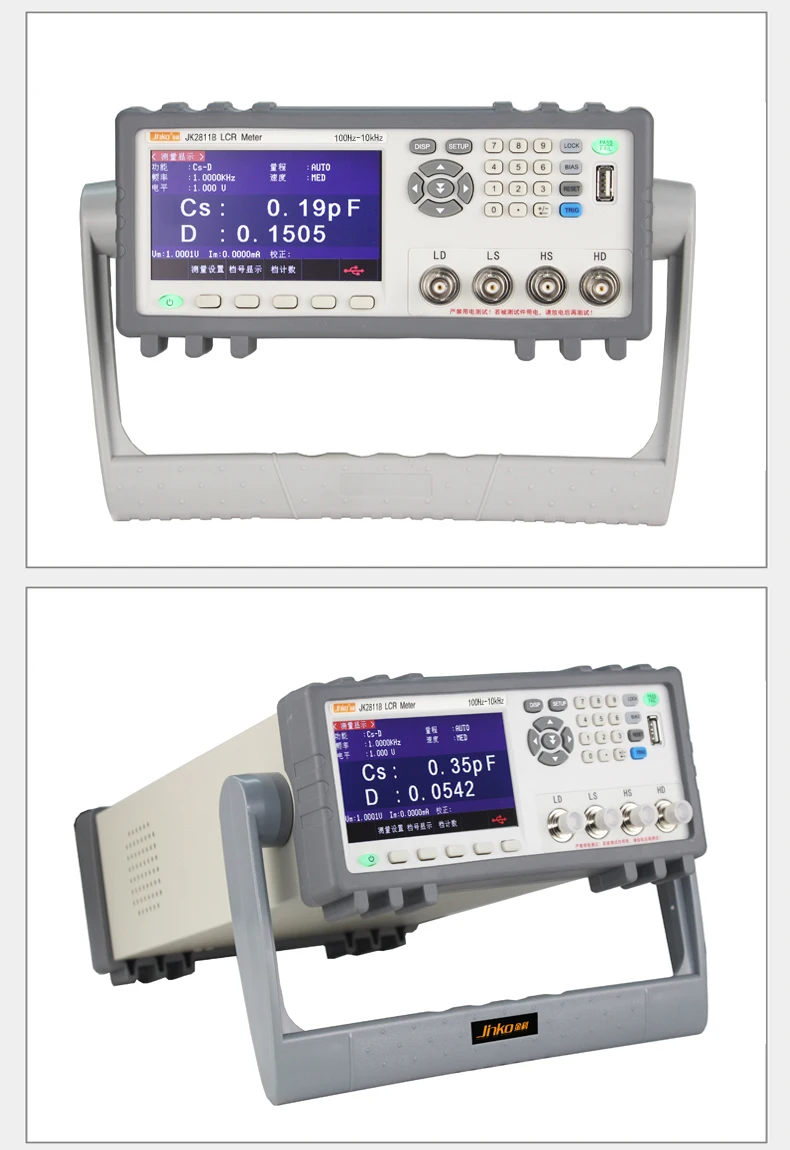

JK2811B LCR digital bridge is the latest development of the company's low-frequency component measurement of the replacement products, of which a number of components used to measure the latest technology, LCD display, easy operation, beautiful appearance. It can meet the needs of quality assurance, incoming inspection and automatic production. The RS232C interface can provide users with remote control and test data statistics and analysis.

Performance characteristics

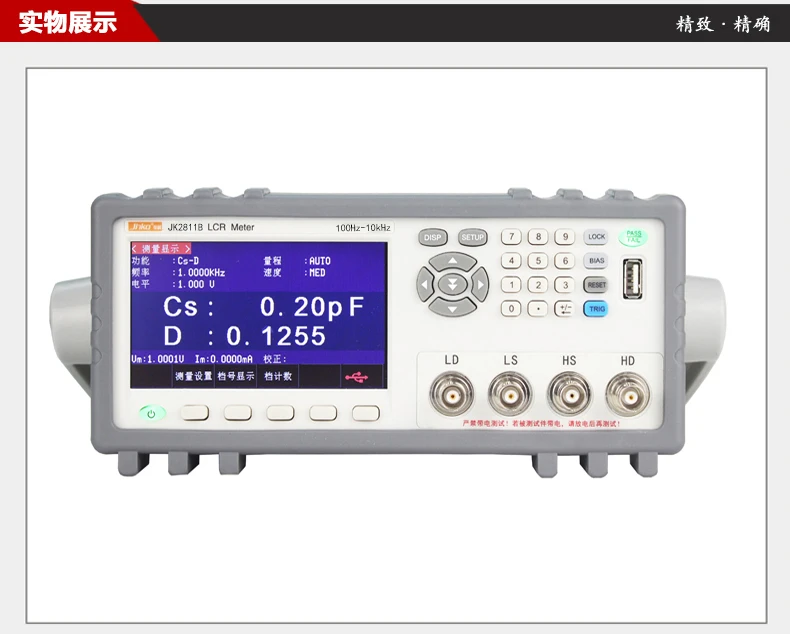

■ 192*64 backlight dot matrix LCD display

■A reasonable combination of simple operation and powerful function

■Fast measuring speed (80ms/ times)

■Good readings are stable

■Two kinds of output impedance of 30 omega and 100 Omega

■Five gear sorting and HANDLER interface

Model

JK2811B

Test parameters

L-Q, C-D, R-Q, |Z|-Q

Basic accuracy

0.1%

equivalent circuit

Series, parallel

Mathematical function

Absolute deviation, percentage deviation

Range mode

Auto, hold

Trigger mode

Internal, manual, external

Test speed

Fast: 18, medium speed: 8, slow: 2.5 (second / second)

Calibration function

Open circuit / short circuiting zero

Test end configuration

Five end

Display mode

Direct reading,Δ%

Display

192*64 LCD display

Test signal frequency

100Hz,120Hz,1kHz,10kHz

Output impedance

30 Ω , 100 Ω

Test signal level

0.1Vrms, 0.3Vrms, 1Vrms

Measurement range

|Z|, R0.0001 Ω — 99.999 MΩ

C0.01 pF — 99999μ F

L0.01 µH — 99999 H

D0.0001 — 9.9999

Q0.0001 — 9999.9

Δ%-999.99% — 999.99%

Comparator

NG, P1, P2, P3, Four grade separation and press noise

Interface

RS232C, Handler  optional

Working temperature and humidity

0°C－40°C,  £90%RH

Power requirements

Volatge    99V－121V, 198V－242V

frequency47.5Hz－63Hz

Power waste

≤20 VA

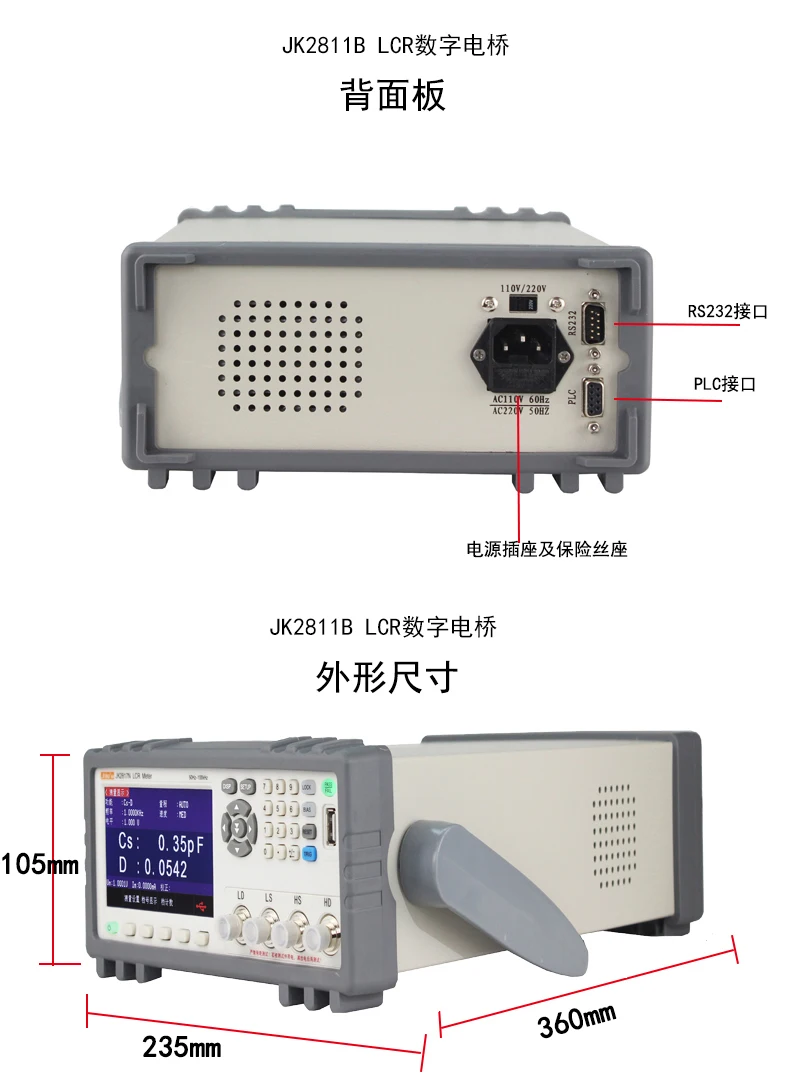

Szie (W×H×D)   weight

308mm*105mm*310mm  ,about 3.5kg
