CNC 4Axis Nema 34 Wantai Stepper Motor 1232oz-in 5.6A & Driver DQ860MA Power Supply Mill Cut |

CNC 4Axis Nema 34 Wantai Stepper Motor 1232oz-in 5.6A & Driver DQ860MA Power Supply Mill Cut |

Unavailable in Russian Federation

This item includes:

                                4 PCS Nema 34 Stepper Motor with 1232oz-in holding torque,

                                4 PCS Stepper Driver with 7.8A replacing MD882,

                                4 PCS  Power Supplies for  350W,60VDC,5.8A

                                1 PC Breakout Board & 1 Cable for free offering

    The Breakout Board is offered to you for free to buy this item above, so that you can set this kit up, and work in better condition.

1, Stepper Motor

Technical Specifications

Part No.:                      WT86STH118-6004A

Frame Size:                  NEMA34

Step Angle:                  1.8 degree

Voltage:                       3.6V

Current:                       5.6A/phase

Resistance:                  0.6 Ohm/phase

Inductance:                  6.5 mH/phase

Holding torque:            8.7N.m            1232oz-in

Rotor inertia:                2700g-cm2

Number of wire leads:  4

Weight:                        3.8 kg

Length:                        118mm

Note: Nema 34 Stepper Motor with 1232oz-in holding torque on  single shaft, the diameter for motor shaft is 14mm.

RED            A+

GREEN       A-

YELLOW    B+

BLUE          B-

Please tell us if you need Double shaft or single shaft, we can manufacture both for you. If you need Double shaft, please tell us your requirements for length of front and rear shaft, as well as the diameter. So that we can offer you the quite good products, thanks!

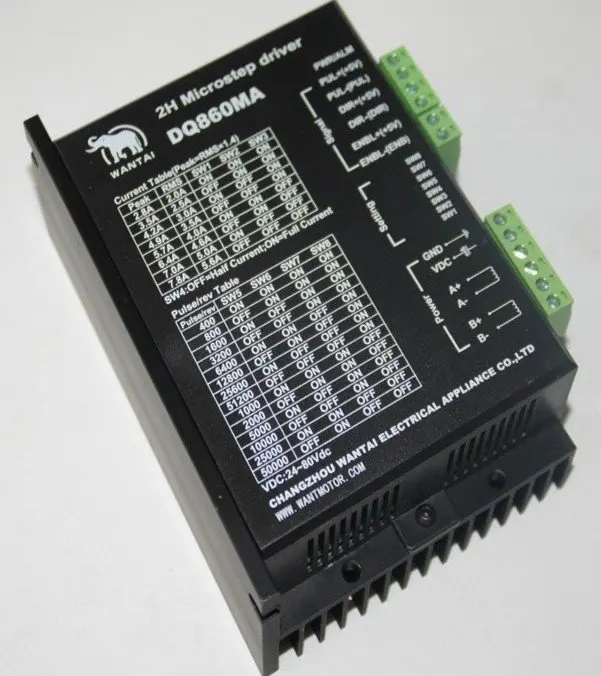

2, Stepper Motor Driver  DQ860MA

Introduction,Features and Applications

Introduction

The DQ860MA is  an economical microstepping driver based on patented technology of Wantai Motor .It is suitable for driving 2-phase 4-phase hybrid stepping motors .By using the advanced bipolar constant-current shopping technique ,it can output more speed and torque from the same motor,compared with traditional drivers ,such as L/R drivers .Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple,therefore less motor heating is achieved.

3, Power Supply-350W,60VDC,5.9A

4, Breakout Board

Description:

 We ship worldwide!

 Our Products are mainly used in robotization, Spinning Automatization, Printing, Packing, Medica   Machine, Make-up Equipment, Communication,    Household Appliance, Water Pump, Milling Machine, Engraver Machine, CNC Routers.. etc automatic equipment of various trades.

We product all kinds of motors & driver. And we can manufacture products according to our customer's design.

Currently we are looking for qualified stocking distributors with competitive price and good discount in United States & Canada for mutually beneficial long-term relationship. We try our best to support our distributors and business partners to develop more market percentage.

Please join us, let’s create the glorious future together!

]
