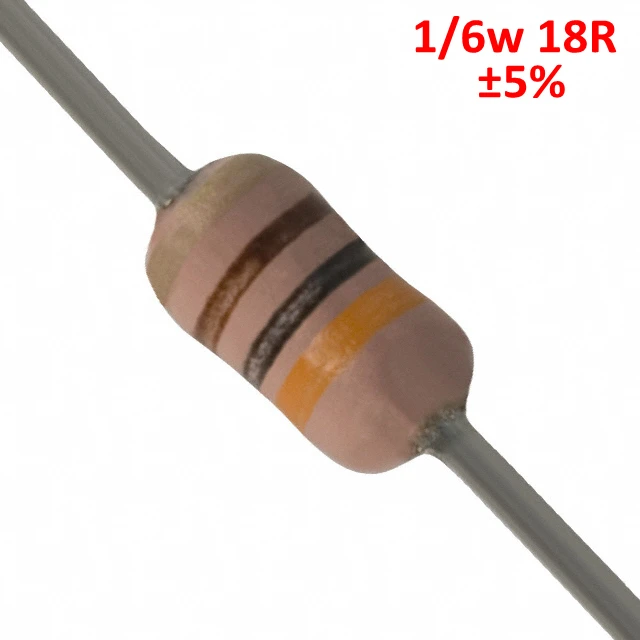

PHISCALE Carbon film resistor 18Ohm 1/6w 0.167w 5% Tolerance 1000pcs | Обустройство дома



Resistance 18Ohm 1/6w(0.167w) Carbon Film Resistors ±%5 Tolerance



Photos:





Dimensions :

Production

name

CF,Carbon Film Resistors,Wirewound Resistors,Fixed Resistors

Power rating

1/2w ~ 10w

Resistance value

0R-22M

Resistance tolerance

5%



Features



1.Stable performance,extensive resistance,small size,high operating temperature and high ultimate voltage.

2.Highly adaptive pulse load ,good high frequency performace.

3.The normal size coating is yellow and the small size coating brown.

Common

specification

1/8W,1/6W,1/4W,1/2W,1/2Ws,1W,1Ws,2W,2Ws,3W,3Ws,5W,5Ws



Performance







Test item

performance

Temperature coefficient

(-1000~+350PPM)/

Short term overload

R≤±(1%R0+0.05Ω)

Resistance to soldering heat

R≤±(1%R0+0.05Ω)

Solderability

The soldering area is over 95%

Load life in humidity

R≤±(5%+0.05Ω)

Load life in heat

R≤±(5% R0+0.05Ω)

Temperature cycling

R≤±(5% R0+0.05Ω)

Cooperation partner

SAMSUNG,LG, TAIDA,CHANGHONG,TCL,KONKA ,ECT

NOTE

1.     For customer specifications,please contact us to discuss the details.

2.     Different power rating owning multi weight ,dimension and packing .

3.     More details, please contact us.



Destails:

    Resistance (Ohms) 18 Power (Watts) 0.167W, 1/6W Composition Carbon Film Temperature Coefficient 0/ -350ppm/°C Tolerance ±5% Size / Dimension 0.091" Dia x 0.250" L (2.30mm x 6.35mm)



We also provide the following resistance(ohm): 1.0    5.6    33     160     820      3.9K     20K     100K     510K     2.7M  1.1    6.2    36     180     910      4.3K     22K     110K     560K     3M  1.2    6.8    39     200     1K       4.7K     24K     120K     620K     3.3M  1.3    7.5    43     220     1.1K     5.1K     27K     130K     680K     3.6M  1.5    8.2    47     240     1.2K     5.6K     30K     150K     750K     3.9M  1.6    9.1    51     270     1.3K     6.2K     33K     160K     820K     4.3M  1.8    10     56     300     1.5K     6.6K     36K     180K     910K     4.7M  2.0    11     62     330     1.6K     7.5K     39K     200K     1M       5.1M  2.2    12     68     360     1.8K     8.2K     43K     220K     1.1M     5.6M  2.4    13     75     390     2K       9.1K     47K     240K     1.2M     6.2M  2.7    15     82     430     2.2K     10K      51K     270K     1.3M     6.8M  3.0    16     91     470     2.4K     11K      56K     300K     1.5M     7.5M  3.3    18     100    510     2.7K     12K      62K     330K     1.6M     8.2M  3.6    20     110    560     3K       13K      68K     360K     1.8M     9.1M  3.9    22     120    620     3.2K     15K      75K     390K     2M       10M  4.3    24     130    680     3.3K     16K      82K     430K     2.2M     15M  4.7    27     150    750     3.6K     18K      91K     470K     2.4M     22M  5.1    30



If you need this type with different tolerance(ohms), such1/2w,1/3w,1/4w,1w,2w,3w,5w......,

please contact us for a further confirmation, thanks!
