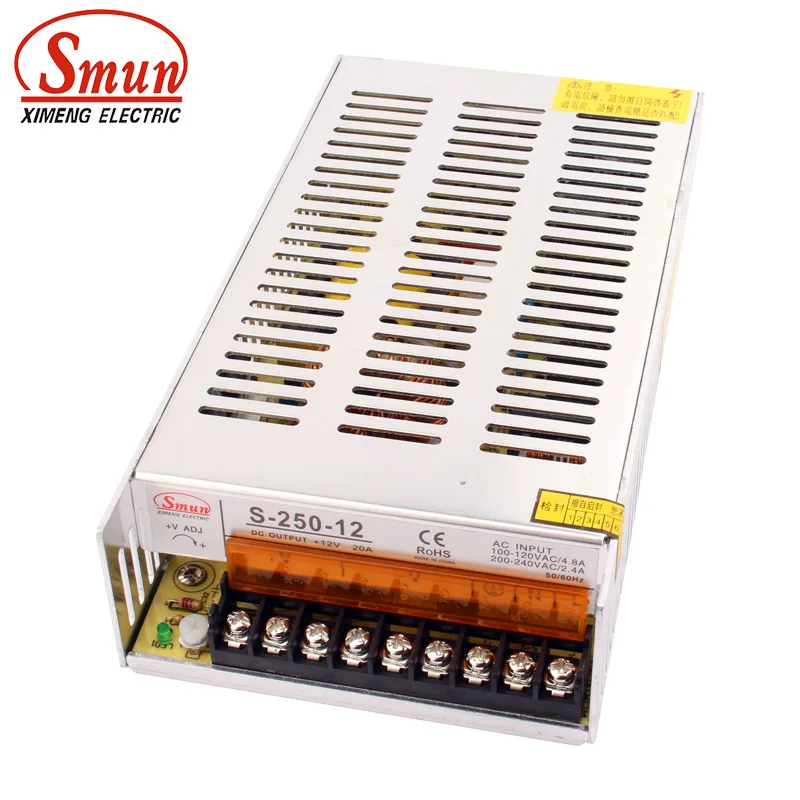

SMUN S-250-12 110V/220VAC to 250W 12V 20A Power Supply For LED Strip Light | Обустройство дома

Model

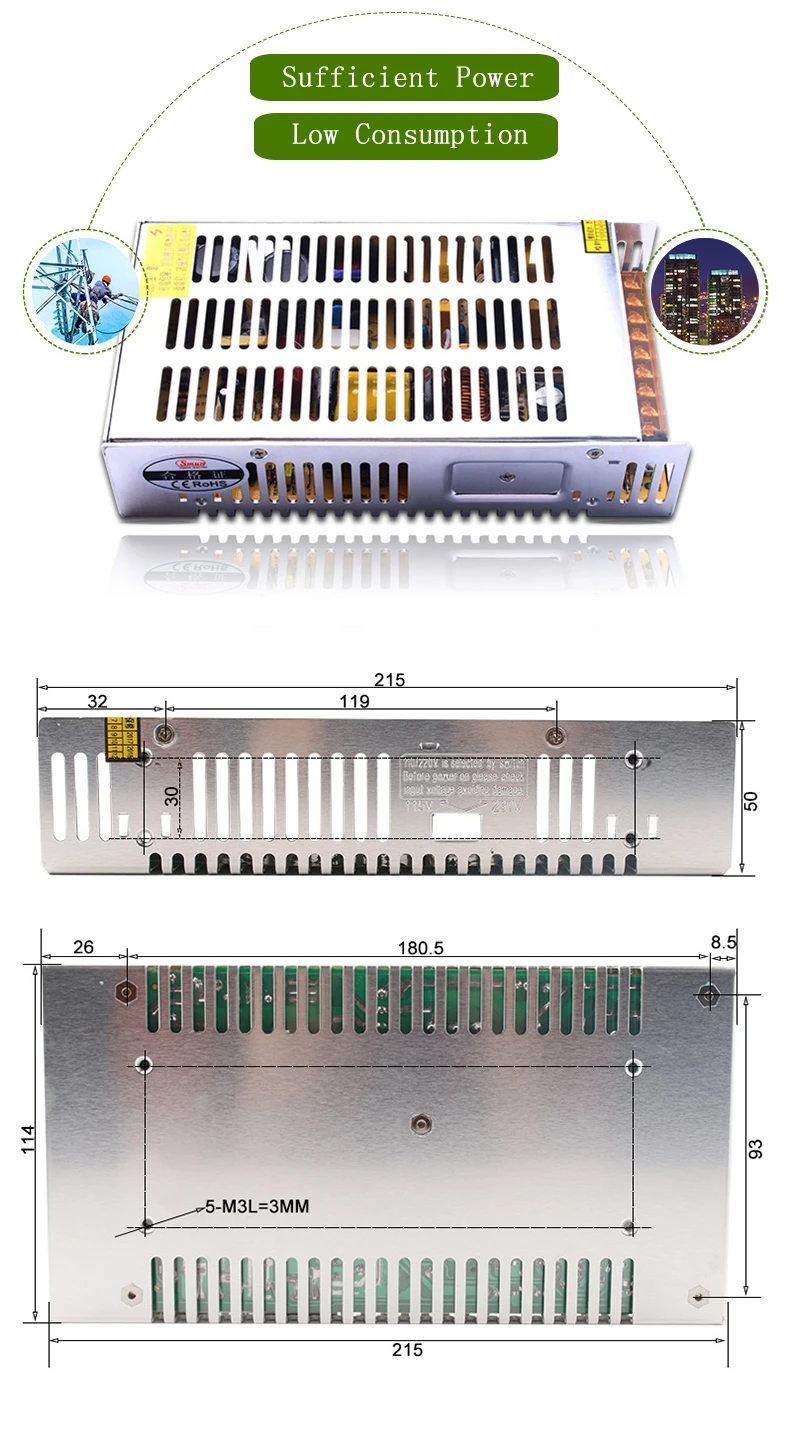

  S-250-12 S-250-15 S-250-24 S-250-48 Output DC output Voltage 12V 15V 24V 48V Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0% Rated Current 20A 15A 10A 5.2A Related Power 250w 250w 250w 250w Wave&Noise 120mVp-p 120mVp-p 120mVp-p 200mVp-p Adjustable range for DC Voltage ±10% ±10% ±10% ±10% Set up,rise,hold up time 200ms  100ms  30ms Input Voltage Range 85 ~132VAC  170-264VAC  47-63HZ 240-370VDC Input Current 4A/115VAC 2A/230VAC Efficiency 79% 80% 81% 82% AC inrush current Cold start current  15A/115V 30A /230VAC Leakage current <0.5mA/240VAC Protection Overload Related output power 105-150% start overload protection Protection type: cutoff output, recovery after restart power Over voltage 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 55V-64.8V Hiccup mode,recovers automatically after fault condition Environment Working temp humidity -10~+60°C 20%~90%RH Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing Safety Withstand voltage I/P-O/P:1.5KVAC  1min I/P-FG:1.5KVAC 1min O/P-FG:0.5KVAC 1min Standard Safety standard Fit UL1012 Refer Design refer to GB4943,UL60950,EN60950 EMC standard Design refer to GB9254,EN55022 Class A Size size L215*W115*H50mm Package 0.95kg, 16pcs/16kg
