NOYAFA NF-8601W многоцелевой сетевой кабель RJ45 тестер с портом POE/PING измерение длины

NOYAFA NF-8601W многоцелевой сетевой кабель RJ45 тестер с портом POE/PING измерение длины

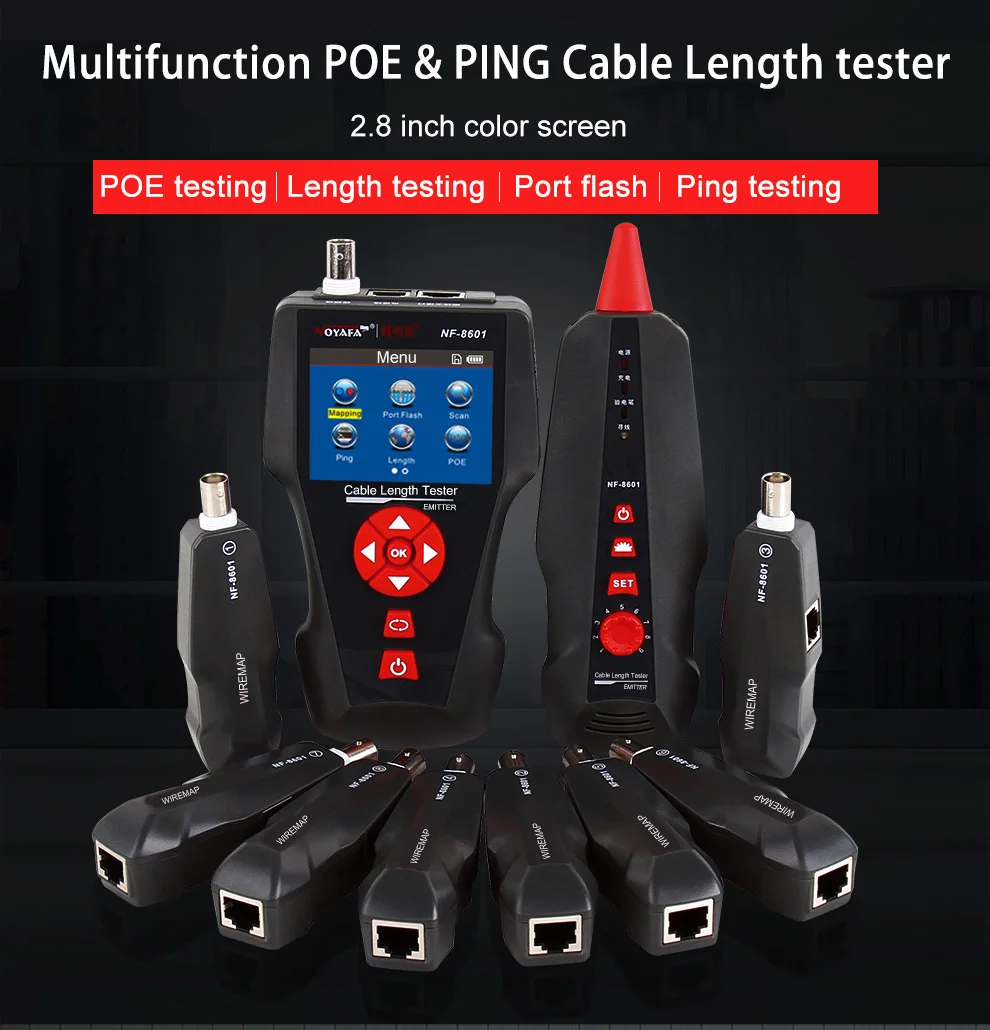

Main function:

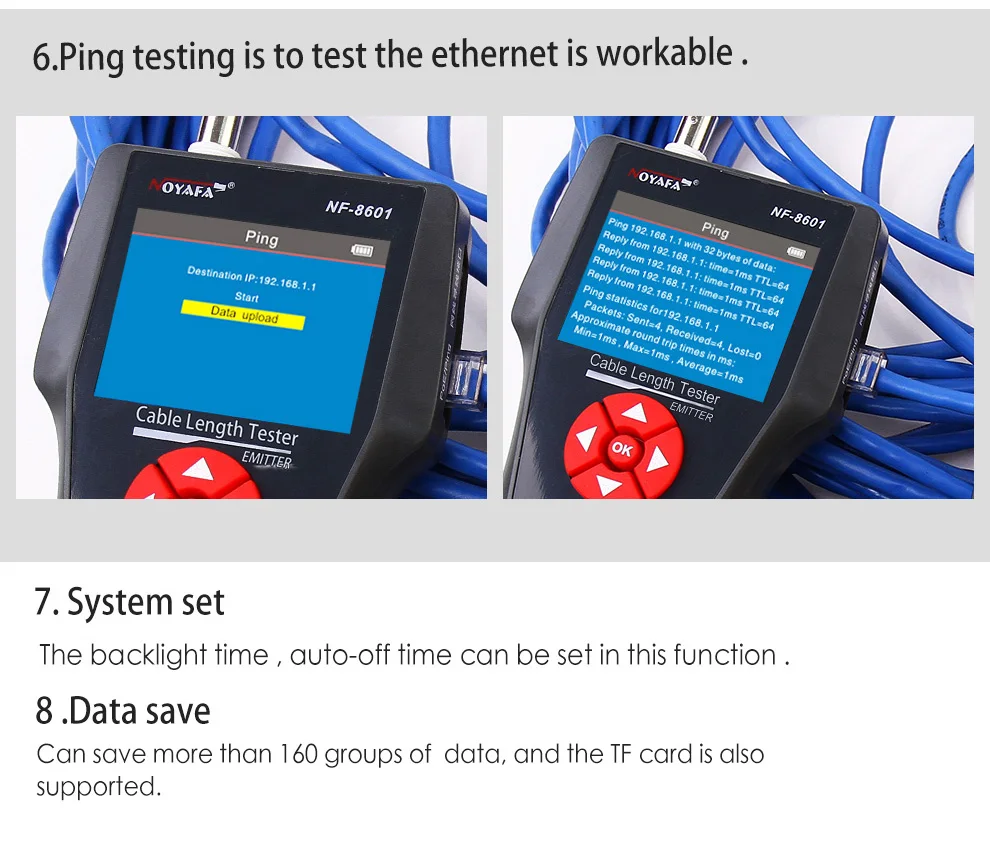

1. PoE / PING testing.

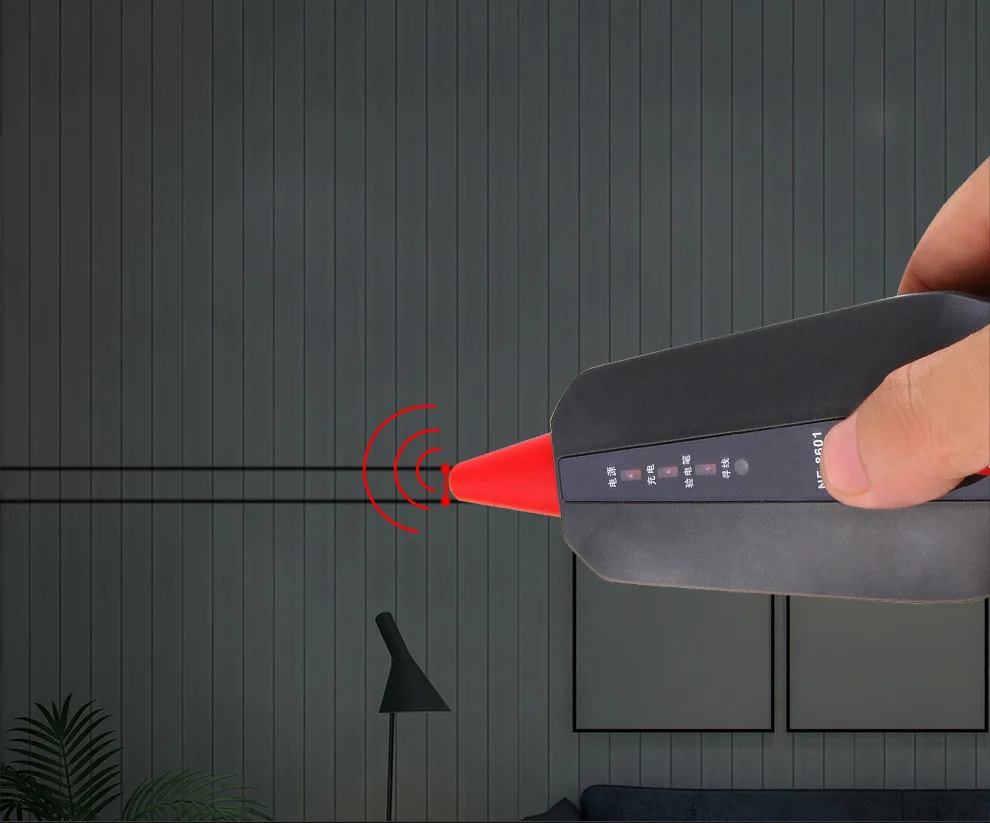

2. Trace targeted cable among lots of unknown cables ;

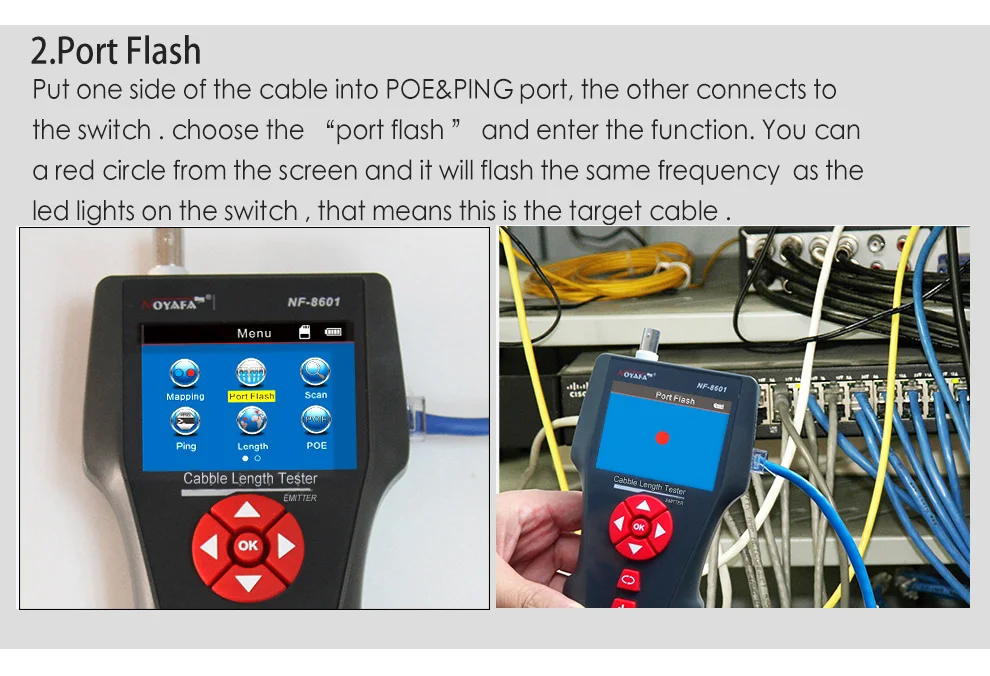

3. Port flash function help trace lan cable connected to swticher or router visually, no need of receiver.

4. Capable of scanning cable on PoE switch without damaging the device.

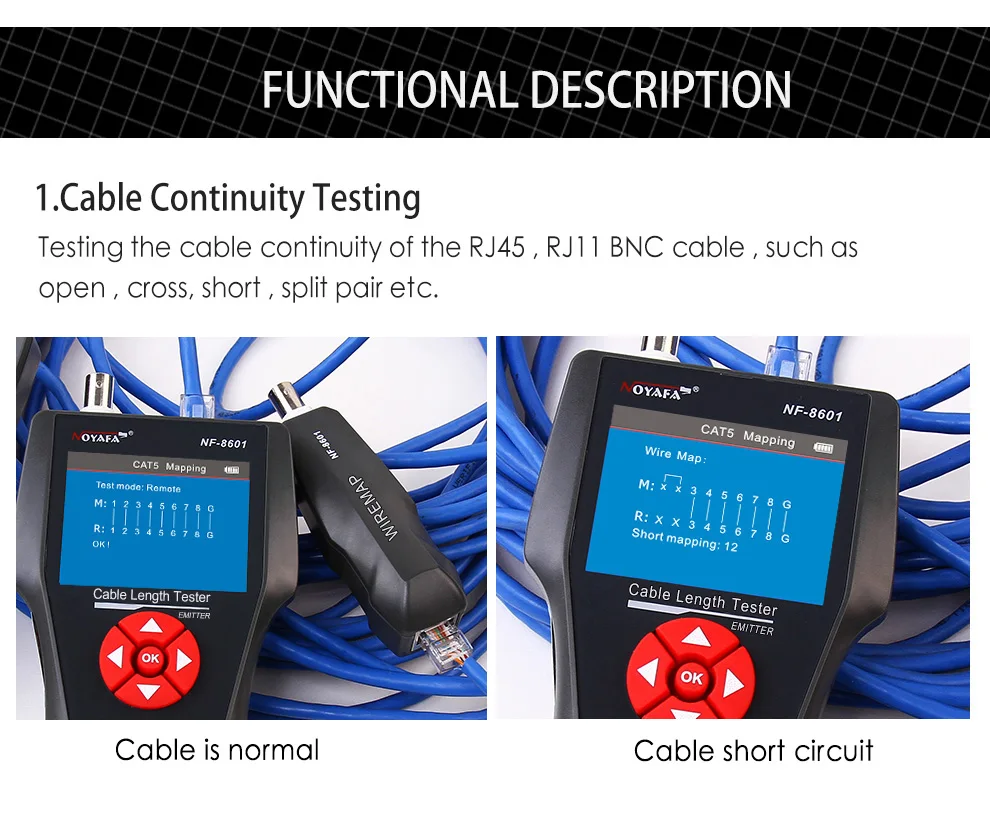

5. Locate faults for RJ11/RJ45/BNC Cable;

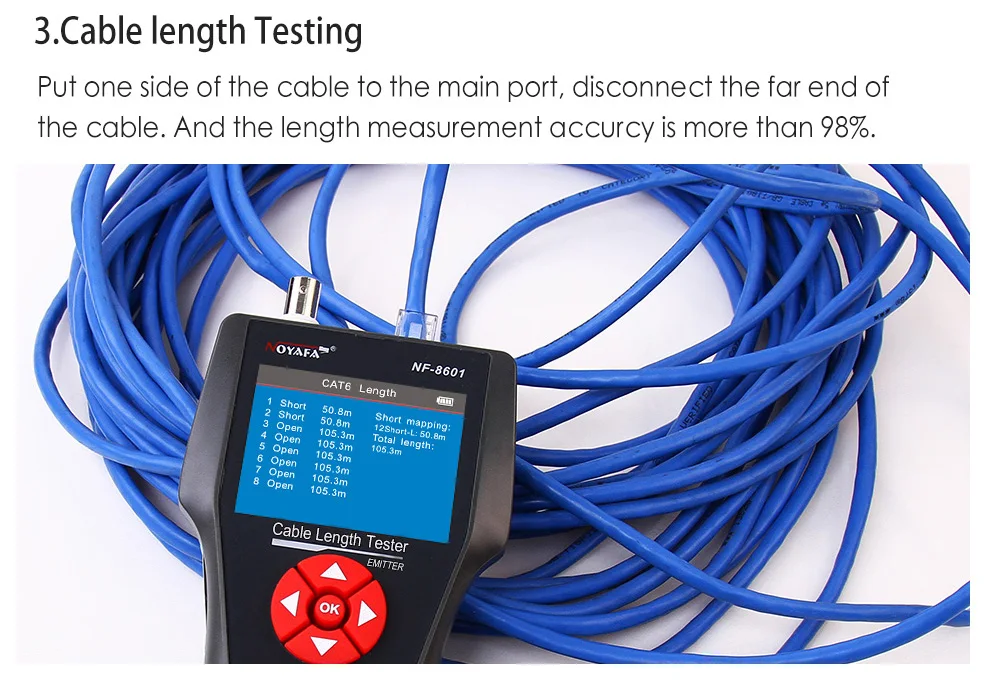

6. measure cable length accurately

7. Voltage detecting function.

8. 8 remotes included , improving work effiency.

9. Memory and storage function, export or upload the data from PC.

10. Built-in Lithium battery and color screen

Benefits

1. Big LCD color screen 320*240

2. Function of storage and memory

3. Currency detection and lighting lamp

4. Automatic delay power on-off

5.Low voltge alarm function

6. Lithium battery for more efficient work

Technical indexes:

NF-8601W Transmitter specifications

Indictor     LCD 320x240 mm, with backlight

Cable test types     STP/UTP 5E,6E network , telephone , coaxial cable

Max. distance of wiremap     2000 m

Max. distance of tracing     2000m

Max. distance of cable length      1000 m

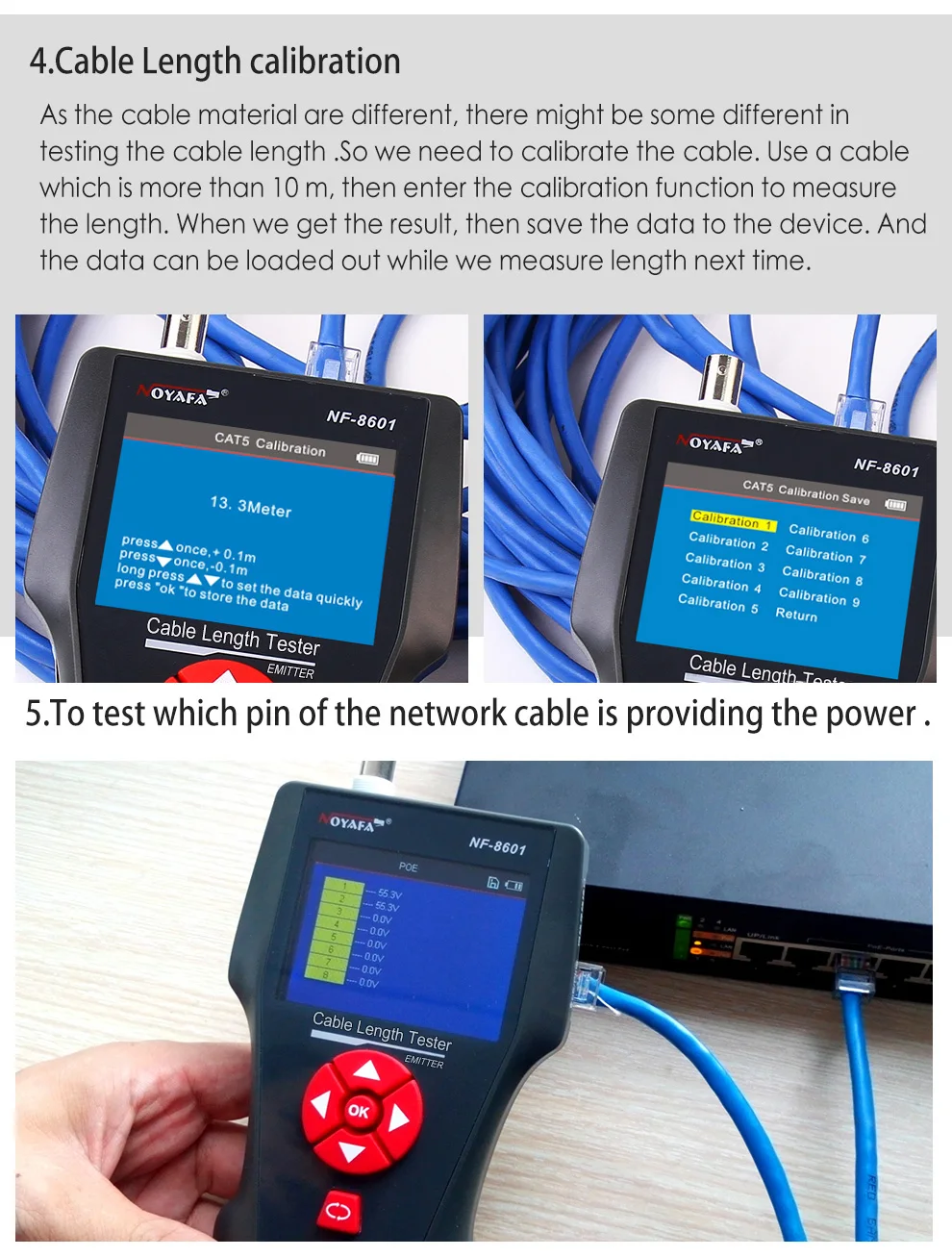

Min. distance of calibration     10 m

Accuracy     3% ( after calibration )

Compatible connectors     RJ11，RJ45 ,BNC, PING/POE

Cable map indication     LCD (#1-#8)

Battery Type     3.7V lithium battery 1800mAh

Work temperature / humidity     10℃ ~ -60℃ / 0℃~70℃

Dimension(LxWxD)     173x92x34mm

NF-8601W Receiver specifications

Cable hunting     RJ11，RJ45, BNC

Types of cable     ≥ 2 cores

Battery Type     3.7V lithium battery 1800mAh

Dimension(LxWxD)     183x58x35 mm

NF-8601W Remote unit specifications

Compatible connectors     RJ11，RJ45, BNC

Remote     8

Dimension(LxWxD)     106x32x30mm

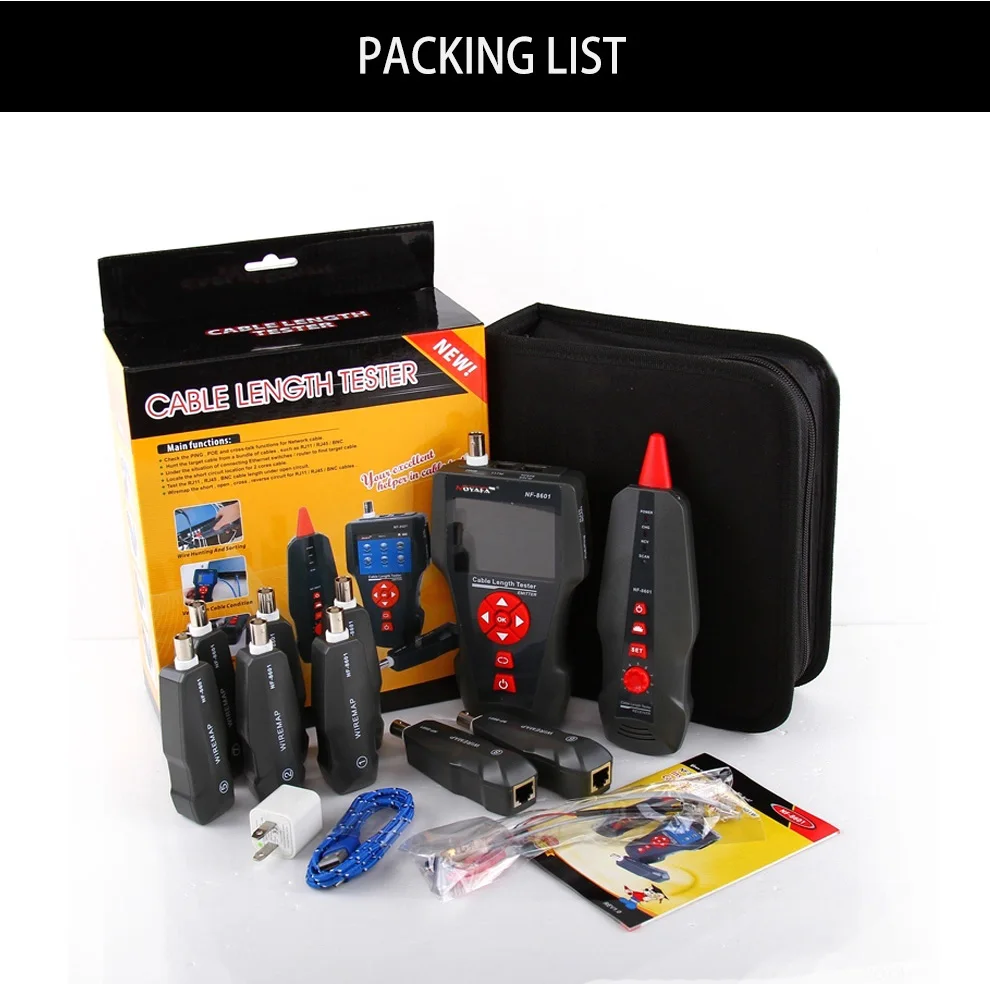

Accessories Included:

earphone x 1 set

telephone line adapter x 1 set

network cable adapter x 1 set

Charging adaptor x 1 set

Cable clips x 1 set

NF-8601W contains 8 remote controls

NF-8601 does not contain 8 remote controls
