1. It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment, etc.

2.Tool sensor enables the machine compensate the tolerance of the tool length.
3.Mach3 control system, separated keyboard control, color LCD display , 20mm Hiwin linear guide rail and TBI ball screw from Taiwan.

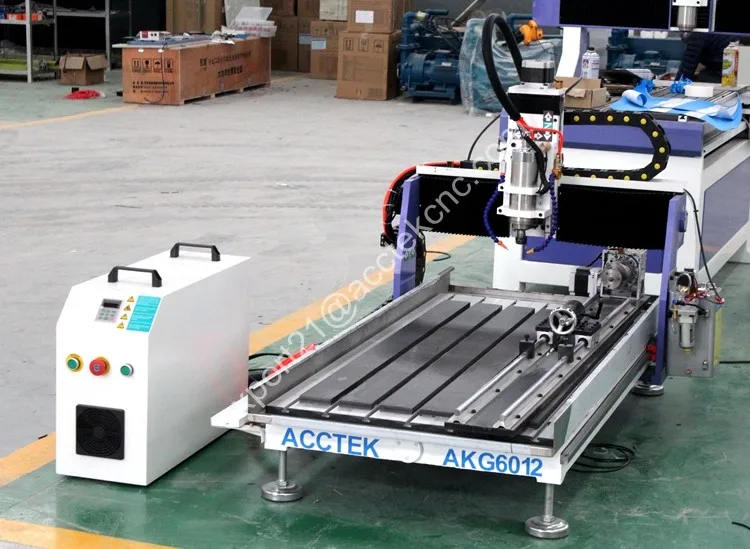

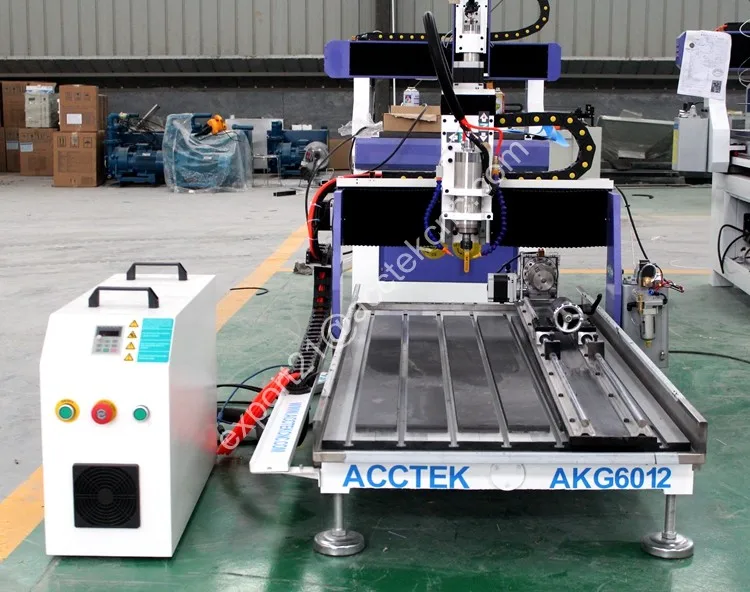

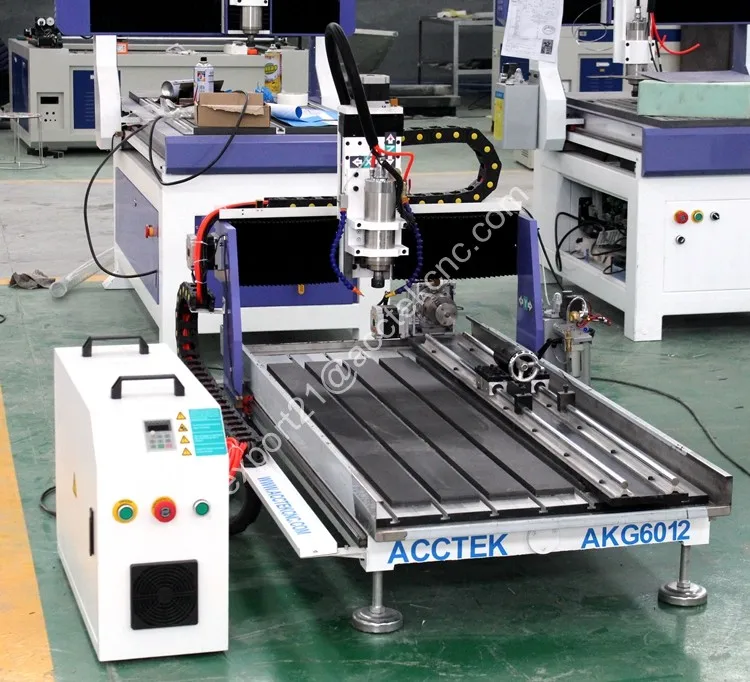

Details of CNC router AKG6012 with 2.2kw water coolingspindle, water tank, rotary device, metal mist spray cooling system, all axis dust prevention:

Main configurations of this type:

# working area:600*1200*200mm

#2.2kw water cooling spindle

#Mach3 control system with USB port

#Aluminium T-slot table with PVC

#Cast iron body and steel structure frame

# Taiwan TBI ballscrew transmission

#Leadshine M542 driver

#NEMA 23 stepper motor

#Tool sensor.

#Taiwan HIWIN 20mm square rails guides

#Mist spray system for metal engraving and cutting ( optional parts)

#Rotary device for cylinder materials engraving and cutting ( optional parts)

#All axis dust prevention  ( optional parts)

Optional parts:

#Manual oil lubrication for both ball screw and square rails guide

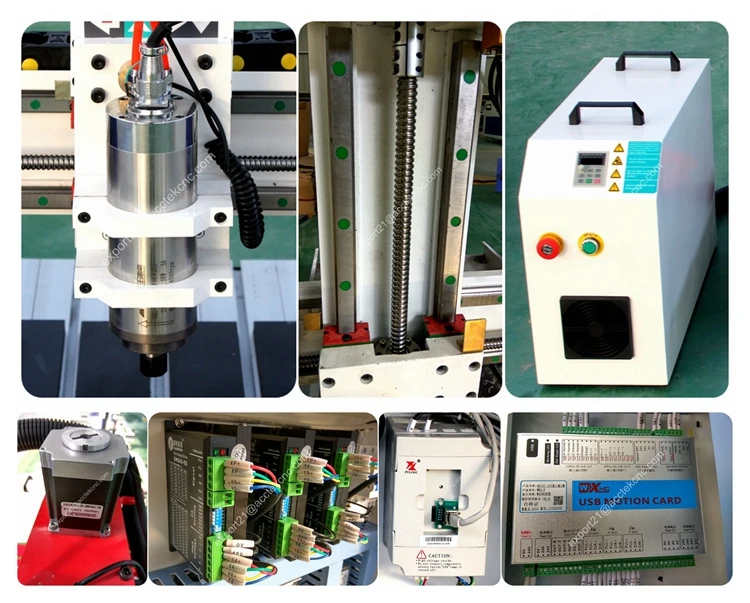

Standard version Main parts details:

1.5KW water cooling spindle,Taiwan Hiwin square rails guide, Taiwan TBI ball screw, Independent control cabinet, NEMA23 stepper motor, Leadshine M542 drivers,Fuling inverter, Mach3 control card.

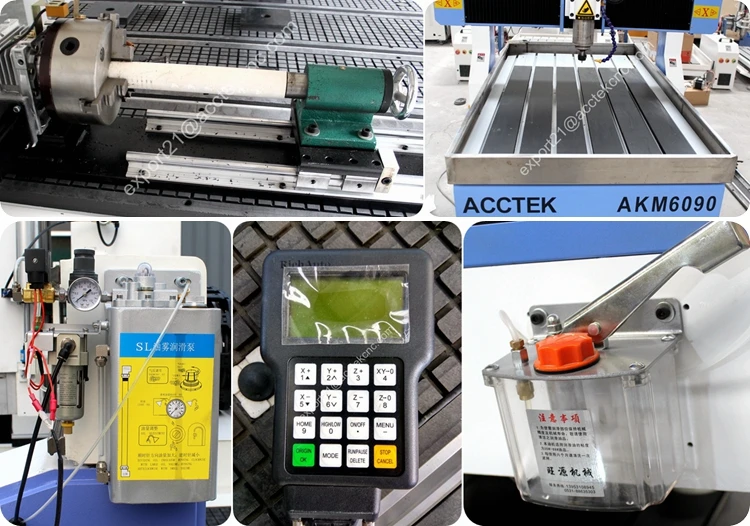

Optional parts details:

Rotary device for cylinder materials, water tank for metal cooling water,

mist spray metal cooling system for vacuum table metal work, DSP handle controller, manual oil lubrication for ball screw and guide rails.

Technical parameters:

1

Model Name

AKG6012

2

X Y Z working area

600*1200*200mm

3

Whole structure

Low bed and Cost iron structure

4

Table surface

T-slot table with PVC

5

Movement parts

Taiwan TBI Ball screw transmition

6

Spindle

1.5kw water cooling spindle

7

Spindle speed

24000 RPM

8

Drive Motor

Leadshine M542 driver

9

Max. Rapid Travel Rate

16000 mm/min

10

Max. Working speed

8000mm/min

11

Control System

Mach3 controller with USB port

12

Software

Type3, Artcam, Ucancam

13

Machine precision

0.01mm

14

Repositioning precision

0.03mm

15

Command

G code

16

Working Voltage

AC 220/380V

17

Machine Size

1510*940*1010mm

18

Package size

1340*1040*1185mm

19

Weight

220kg/270kg(net/gross)

20

Dust Collector

Optional

21

Color

Blue-white

Applications:

Application Industry:  Stone processing Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board and MDF processing cutting, stamp cutting.

Material:  Stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on.

Wood Processing

Processing density boards ,stiletto for surfing boards ,processing of marbles, cabinet and furniture.

Craft

Engraving characters of any language and patterns on gifts and souvenirs, promitive processing and shaping of arttistic crafts and stiletto.

Advertisment

Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.

Moulding

Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.

Artitechtural models

Engraving fine window ,fencing and wall patterns .ect.

Seal

Engraving seals and medal on materials such as buffalo horn ,wood ,ect.

Engraving character, number and other pattern on label for products and product directly

Engraving character, number and other pattern on label for products and product directly.

Samples:

FAQ

 Q1:I knew nothing about this machine,what kind of machine I should choose?

Very easy to choose, just tell us : 1. the work you want to do?  2. the maximum size of your materiaols,  then we give you perfect solutions and suggestions.

 Q2:When I got this machine,but I did not know how to use it,What should I do?

We will send video and english version manual with the machine,If you still have some doubts,we can talk by telephone or skype. Or even send our engineers oversea to help you.

 Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

 Q4:What is the MOQ?

MOQ for our products is 1 set machine, we could send it to the nearest port to you.
